Pratissoli KT28A Series Pumps

Features:

  • GPM= 22.2 or 18.4
  • PSI= 2538 or 2900
  • RPM= 1750 or 1450
  • Bore= 28 mm
  • Stroke= 26mm
  • HP= 38 EBHP or 36 EBHP
  • Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT LP Series has a high resistance light alloy crankcase, cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrided. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40kg
More Details
Pratissoli KT20A Series Pumps

Features:

  • GPM= 11.3 or 9.4
  • PSI= 4640 or 5800
  • RPM= 1750 or 1450
  • Bore= 20mm
  • Stroke= 206m
  • HP= 36 EBHP or 37 EBHP
  • Triplex plunger pump, available in 4 flows. It has symmetrical power end design featuring
  • top and bottom mounting holes allowing for easy left to right shaft conversion. It has the
  • new generation pressure packing design with an integrated cooling system, orthogonally
  • fitted valves, and splash lubrication.
  • The KT HP Series has high resistance, light alloy crankcase, Stainless Steel manifold,
  • tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel
  • crankshaft, hardened tempered, and nitrided. The plunger guides are cast iron, nickle
  • treated, with solid ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1" NPT-F
  • Discharge Port Thread: 1/2" NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40k
More Details
Pratissoli KS32A Series Plunger Pumps

Features:

  • GPM= 38.3
  • PSI= 2900
  • RPM= 1200
  • Bore= 32 mm
  • Stroke= 50 mm
  • BHP= 76.1
  • Weight= 209 lbs.
  • Non-elastic crankshaft with flame hardened journals.
  • 420 stainless steel, nickel coated manifold, special aluminum alloy connecting rods, cast aluminum symmetrical crankcase.
  • Solid ceramic plunger, lubricated high and low pressure seal system.
  • Available with external gear reducer for direct drive applications.
  • Specify RPM when ordering.
  • Use NG for units without gearbox.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 NPT-F
  • Discharge Port Thread: 1-1/2 NPT-F
  • Oil Capacity: 128.5 fl oz
  • Shaft Diameter: 40 mm
  • Pump Dimensions: 23" x 19" x 10.3"

Construction:

Triplex plunger pump, available in 4 versions. Patent pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. Low-high pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas. Splash lubrication. External gearbox available in 3 ratios and positionable on left or right side of the pump. Flushing systems available on request on selected versions.



More Details
Pratissoli Hydraulic Bell Housing & Flex Coupler

Pratissoli Hydraulic Bell Housing & Flex Coupler - Mounting Kit Built to North America NEMA Standards

Features of the Pratissoli Hydraulic Bell Housing & Flex Coupler:

  • - Easy Installation: The assembly makes installation easy as it comes fully assembled and ready to mount to the pump. Each assembly includes bell housing, flexible joint, spacers and all necessary plugs and screws for mounting.
  • - Reduced Operating Costs: Mounts directly on the pump. Save hours of installation and design time! Less down time on the truck due to mounting problems with other home made mounting assemblies.
  • - Improved Pump Life: Longer pump life due to proper alignment of the pump to the hydraulic motor.
  • - Vibration Control: Proper alignment and proper mounting equipment improve vibration of installation.



More Details
Pratissoli KS Series Triplex Plunger Pumps

Features:

  • - Non-elastic crankshaft with flame hardened journals .
  • - Available with external gear reducer for direct drive applications.
  • - Specify RPM when ordering.
  • - Use NG for units without gearbox.
  • - Max. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 2" NPT-F
  • - Discharge Port Thread: 1-1/2" NPT-F
  • - Shaft Diameter: 40 mm
  • - Pump Dimensions: 584 mm x 483 mm x 261 mm
  • - Solid ceramic plunger, lubricated high and low pressure seal system.
  • - RPM: 1500, 1800, or 2200
  • - 420 stainless steel, nickel coated manifold, special aluminum alloy connecting rods, cast aluminum symmetrical crankcase.

Construction:

Triplex plunger pump, available in 4 versions. Patent pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. Low-high pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas. Splash lubrication. External gearbox available in 3 ratios and positionable on left or right side of the pump. Flushing systems available on request on selected versions.



More Details
Pratissoli KT HP Series Triplex Plunger Pumps

Features:

  • - Triplex plunger pump, available in 4 flows. It has symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • - The KT HP Series has i high resistance, light alloy crankcase, Stainless Steel manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened tempered, and nitrided. The plunger guides are cast iron, nickle treated, with solid ceramic plungers, and stainless steel valves.
  • - Max. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1" NPT-F
  • - Discharge Port Thread: 1/2" NPT-F
  • - Shaft Diameter: 1.181in/ 30mm
  • - Pump Dimensions: 15.55in x 13.4in x 8.35in
  • - Crankcase Oil Capacity: 2L
  • - Weight: 100lbs/ 40kg



More Details
Pratissoli MK65A Series Plunger Pumps

Features:

  • GPM= 103.6 or 107.3
  • PSI= 2175
  • RPM= 1800 or 1500
  • Bore= 65 mm
  • Stroke= 72 mm
  • HP= 158.0 EBHP
  • Weight= 405.0 lbs.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 (MK(S)40/45/50),  80 mm (MK55(S)/60/65)
  • Discharge Port Thread: 1 (MK(S)40/45/50), 1-1/2 (MK(S)55/60/65)
  • Shaft Diameter: 55.0 mm
  • Pump Dimensions: 829 mm x 646 mm x 362 mm (MK(S)40/45/50) and 841 mm x 646 mm x 362 mm (MK(S)55/60/65)
  • Crankcase Oil Capacity: 14.0 litres
  • Low pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication. Includes external gear box in 1500 or 1800 rpm, can be positioned on left or right hand side of pump.
More Details
Pratissoli SM14 Series Plunger Pumps

Features:

  • - GPM: 6.91
  • - PSI: 21750
  • - RPM: 1500, 1800 and 2200
  • - Bore: 14 mm
  • - Stroke: 70 mm
  • - HP: 101
  • - Weight: 260 kg
  • - Includes an external gearbox position when ordering.
  • - Min. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1½" G
  • - Discharge Port Thread: 3/4 HP Special
  • - Shaft Diameter: 1.969 in. /50.0 mm
  • - Pump Dimensions: 34.6" x 23" x 14.13"
  • - Crankcase Oil Capacity: 9 litres
  • - Pump body in cast iron.
  • - High resistance stainless steel manifold
  • - Roller rim shaft bearings.
  • - Forged steel connecting rods with anti-friction bearings
  • - Tungsten carbide plungers.
  • - Crankshaft made of nitrited, hardened and tempered alloy steel light alloy piston guides.
  • - Stainless steel valves.
  • - Double pressure packings, vertically fitted suction/ delivery valves, splash, lubrication, and includes an optimal drain/ priming valve kit.
More Details
Pratissoli SM16 Series Plunger Pumps

Features:

  • - GPM: 9.0
  • - PSI: 17400
  • - RPM: 1500, 1800 and 2200
  • - Bore: 16 mm
  • - Stroke: 70 mm
  • - HP: 106
  • - Weight: 260 kg
  • - Includes an external gearbox position when ordering.
  • - Min. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1½"
  • - Discharge Port Thread: 3/4 HP Special
  • - Shaft Diameter: 1.969 in. /50.0 mm
  • - Pump Dimensions: 34.6" x 23" x 14.13"
  • - Crankcase Oil Capacity: 9 litres
  • - Pump body in cast iron.
  • - High resistance stainless steel manifold
  • - Roller rim shaft bearings.
  • - Forged steel connecting rods with anti-friction bearings
  • - Crank shaft made of nitrited, hardened and tempered alloy steel light alloy piston guides
  • - Tungsten carbide plungers.
  • - Stainless steel valves.
  • - It has double pressure packings, vertically fitted suction/ delivery valves, splash, lubrication, and includes an optimal drain/ priming valve kit.
More Details
Pratissoli SM18 Series Plunger Pumps

Features:

  • - GPM: 11.4
  • - PSI: 13050
  • - RPM: 1500, 1800 and 2200
  • - Bore: 18 mm
  • - Stroke: 70 mm
  • - HP: 101
  • - Weight: 260 kg
  • - Includes an external gearbox position when ordering.
  • - Min. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1½" G
  • - Discharge Port Thread: 3/4 HP Special
  • - Shaft Diameter: 1.969 in. /50.0 mm
  • - Pump Dimensions: 34.6" x 23" x 14.13"
  • - Crankcase Oil Capacity: 9 litres
  • - Pump body in cast iron.
  • - High resistance stainless steel manifold
  • - Roller rim shaft bearings.
  • - Forged steel connecting rods with anti-friction bearings
  • - Tungsten carbide plungers.
  • - Crankshaft made of nitrited, hardened and tempered alloy steel light alloy piston guides.
  • - Stainless steel valves.
  • - It has double pressure packings, vertically fitted suction/ delivery valves, splash, lubrication, and includes an optimal drain/ priming valve kit.
More Details
Pratissoli SM20 Series Plunger Pumps

Features:

  • - GPM: 14.0
  • - PSI: 10875
  • - RPM: 1500, 1800 and 2200
  • - Bore: 20 mm
  • - Stroke: 70 mm
  • - HP: 103
  • - Weight: 260 kg
  • - Includes an external gearbox position when ordering.
  • - Min. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1½" G
  • - Discharge Port Thread: 3/4 HP Special
  • - Shaft Diameter: 1.969 in. /50.0 mm
  • - Pump Dimensions: 34.6" x 23" x 14.13"
  • - Crankcase Oil Capacity: 9 litres
  • - Pump body in cast iron.
  • - High resistance stainless steel manifold
  • - Roller rim shaft bearings.
  • - Forged steel connecting rods with anti-friction bearings
  • - Tungsten carbide plungers.
  • - Crank shaft made of nitrited, hardened and tempered alloy steel light alloy piston guides.
  • - Stainless steel valves.
  • - It has double pressure packings, vertically fitted suction/ delivery valves, splash, lubrication, and includes an optimal drain/ priming valve kit.
More Details
Pratissoli SM22 Series Plunger Pumps

Features:

  • - GPM: 16.9
  • - PSI: 8700
  • - RPM: 1500, 1800 and 2200
  • - Bore: 22 mm
  • - Stroke: 70 mm
  • - HP: 100
  • - Weight: 260 kg
  • - Includes an external gearbox position when ordering.
  • - Min. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1½" G
  • - Discharge Port Thread: 3/4 HP Special
  • - Shaft Diameter: 1.969 in. /50.0 mm
  • - Pump Dimensions: 34.6" x 23" x 14.13"
  • - Crankcase Oil Capacity: 9 litres
  • - Pump body in cast iron.
  • - High resistance stainless steel manifold
  • - Roller rim shaft bearings.
  • - Forged steel connecting rods with anti-friction bearings
  • - Tungsten carbide plungers.
  • - Crankshaft made of nitrited, hardened and tempered alloy steel light alloy piston guides.
  • - Stainless steel valves.
  • - Double pressure packings, vertically fitted suction/ delivery valves, splash, lubrication, and includes an optimal drain/ priming valve kit.
More Details
Pratissoli SM24 Series Plunger Pumps

Features:

  • - GPM: 20.1
  • - PSI: 7250
  • - RPM: 1500, 1800 and 2200
  • - Bore: 24 mm
  • - Stroke: 70 mm
  • - HP: 99
  • - Weight: 260 kg
  • - Includes an external gearbox position when ordering.
  • - Min. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1½" G
  • - Discharge Port Thread: 3/4 HP Special
  • - Shaft Diameter: 1.969 in. /50.0 mm
  • - Pump Dimensions: 34.6" x 23" x 14.13"
  • - Crankcase Oil Capacity: 9 litres
  • - Pump body in cast iron.
  • - High resistance stainless steel manifold
  • - Roller rim shaft bearings.
  • - Forged steel connecting rods with anti-friction bearings
  • - Tungsten carbide plungers.
  • - Crankshaft made of nitrited, hardened and tempered alloy steel light alloy piston guides.
  • - Stainless steel valves.
  • - Double pressure packings, vertically fitted suction/ delivery valves, splash, lubrication, and includes an optimal drain/ priming valve kit.
More Details
Pratissoli VK12 Series Plunger Pumps

Features:

  • - GPM: 5.3
  • - PSI: 21750
  • - RPM: 1500, 1800 & 2200
  • - Bore: 12 mm
  • - Stroke: 50 mm
  • - HP: 78
  • - Weight: 96 lbs.

Additional features of the Pratissoli VK12 Series Plunger Pumps:

  • - VK Series Triplex Plunger Pumps are available in 2 flows. Low pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication.
  • - Includes External Gear Box in 1500, 1800 or 2200 rpm, can be positioned on left or right hand side of the pump.
  • - Max. Inlet Pressure: 45 psi.
  • - Max. Fluid Temperature: 140° F.
  • - Inlet Port Thread: 3/4" BSP-F.
  • - Discharge Port Thread: 1/2" BSP-F Flange.
  • - Shaft Diameter: 1.575 in. /40.0 mm
  • - Pump Dimensions: 25.39" x 14.44" x 15.11"
  • - Crankcase Oil Capacity: 14 litres
More Details
Pratissoli VK14 Series Plunger Pumps

Features:

  • - GPM: 7.4
  • - PSI: 15950
  • - RPM: 1500, 1800 & 2200
  • - Bore: 14 mm
  • - Stroke: 50 mm
  • - HP: 78
  • - Weight: 96 lbs.

Additional features of the Pratissoli VK14 Series Plunger Pumps:

  • - VK Series Triplex Plunger Pumps are available in 2 flows. Low pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication.
  • - Includes External Gear Box in 1500, 1800 or 2200 rpm, can be positioned on left or right hand side of the pump.
  • - Max. Inlet Pressure: 45 psi.
  • - Max. Fluid Temperature: 140° F.
  • - Inlet Port Thread: 3/4" BSP-F.
  • - Discharge Port Thread: 1/2" BSP-F Flange.
  • - Shaft Diameter: 1.575 in. /40.0 mm
  • - Pump Dimensions: 25.39" x 14.44" x 15.11"
  • - Crankcase Oil Capacity: 14 litres
More Details
Pratissoli MW32 Series Plunger Pumps

Features:

  • GPM: 35.9
  • PSI: 4350
  • RPM: 1500, 1800, 2200
  • Bore: 32 mm
  • Stroke: 70 mm
  • HP: 106
  • Weight: 244 kg
  • Please specify RPM and gear box position when ordering.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2" NPT-F (MW32, 36,40); 66mm flange (MW45, 50, 55)
  • Discharge Port Thread: 1" NPT-F (MW32, 36,40); 1¼" NPT-F (MW45, 50, 55)
  • Shaft Diameter: 1.969" / 50 mm
  • Pump Dimensions: 29.5" x 23" x 14.5"
  • Crankcase Oil Capacity: 9 litres
  • The MW Series Triplex Plunger Pump is available in 6 flows. The incorporated gearbox is available in 3 ratios, 1500, 1800 and 2200 rpm. It has double pressure packings, vertically fitted suction/delivery valves, splash lubrication and includes optimal drain/priming valve kit. Includes external gearbox positionable on left or right hand side of pump.
More Details
Pratissoli MW36 Series Plunger Pumps

Features:

  • GPM: 45.4
  • PSI: 3500
  • RPM: 1500, 1800, 2200
  • Bore: 36 mm
  • Stroke: 70 mm
  • HP: 108
  • Weight: 244 kg
  • Please specify RPM and gear box position when ordering.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2" NPT-F (MW32, 36,40); 66mm flange (MW45, 50, 55)
  • Discharge Port Thread: 1" NPT-F (MW32, 36,40); 1¼" NPT-F (MW45, 50, 55)
  • Shaft Diameter: 1.969" / 50 mm
  • Pump Dimensions: 29.5" x 23" x 14.5"
  • Crankcase Oil Capacity: 9 litres
  • The MW Series Triplex Plunger Pump is available in 6 flows. The incorporated gearbox is available in 3 ratios, 1500, 1800 and 2200 rpm. It has double pressure packings, vertically fitted suction/delivery valves, splash lubrication and includes optimal drain/priming valve kit. Includes external gearbox positionable on left or right hand side of pump.
More Details
Pratissoli MW40 Series Plunger Pumps

Features:

  • GPM: 56.3
  • PSI: 2750
  • RPM: 1500, 1800, 2200
  • Bore: 40 mm
  • Stroke: 70 mm
  • HP: 108
  • Weight: 244 kg
  • Please specify RPM and gear box position when ordering.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2" NPT-F (MW32, 36,40); 66mm flange (MW45, 50, 55)
  • Discharge Port Thread: 1" NPT-F (MW32, 36,40); 1¼" NPT-F (MW45, 50, 55)
  • Shaft Diameter: 1.969" / 50 mm
  • Pump Dimensions: 29.5" x 23" x 14.5"
  • Crankcase Oil Capacity: 9 litres
  • The MW Series Triplex Plunger Pump is available in 6 flows. The incorporated gearbox is available in 3 ratios, 1500, 1800 and 2200 rpm. It has double pressure packings, vertically fitted suction/delivery valves, splash lubrication and includes optimal drain/priming valve kit. Includes external gearbox positionable on left or right hand side of pump.
More Details
Pratissoli MW45 Series Plunger Pumps

Features:

  • GPM: 71.1
  • PSI: 2250
  • RPM: 1500, 1800, 2200
  • Bore: 45 mm
  • Stroke: 70 mm
  • HP: 109
  • Weight: 244 kg
  • Please specify RPM and gear box position when ordering.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2" NPT-F (MW32, 36,40); 66mm flange (MW45, 50, 55)
  • Discharge Port Thread: 1" NPT-F (MW32, 36,40); 1¼" NPT-F (MW45, 50, 55)
  • Shaft Diameter: 1.969" / 50 mm
  • Pump Dimensions: 29.5" x 23" x 14.5"
  • Crankcase Oil Capacity: 9 litres
  • The MW Series Triplex Plunger Pump is available in 6 flows. The incorporated gearbox is available in 3 ratios, 1500, 1800 and 2200 rpm. It has double pressure packings, vertically fitted suction/delivery valves, splash lubrication and includes optimal drain/priming valve kit. Includes external gearbox positionable on left or right hand side of pump.
More Details
Pratissoli MW50 Series Plunger Pumps

Features:

  • GPM: 88.0
  • PSI: 1800
  • RPM: 1500, 1800, 2200
  • Bore: 50 mm
  • Stroke: 70 mm
  • HP: 109
  • Weight: 244 kg
  • Please specify RPM and gear box position when ordering.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2" NPT-F (MW32, 36,40); 66mm flange (MW45, 50, 55)
  • Discharge Port Thread: 1" NPT-F (MW32, 36,40); 1¼" NPT-F (MW45, 50, 55)
  • Shaft Diameter: 1.969" / 50 mm
  • Pump Dimensions: 29.5" x 23" x 14.5"
  • Crankcase Oil Capacity: 9 litres
  • The MW Series Triplex Plunger Pump is available in 6 flows. The incorporated gearbox is available in 3 ratios, 1500, 1800 and 2200 rpm. It has double pressure packings, vertically fitted suction/delivery valves, splash lubrication and includes optimal drain/priming valve kit. Includes external gearbox positionable on left or right hand side of pump.
More Details
Pratissoli MW55 Series Plunger Pumps

Features:

  • GPM: 106.5
  • PSI: 1450
  • RPM: 1500, 1800, 2200
  • Bore: 55 mm
  • Stroke: 70 mm
  • HP: 109
  • Weight: 244 kg
  • Please specify RPM and gear box position when ordering.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2" NPT-F (MW32, 36,40); 66mm flange (MW45, 50, 55)
  • Discharge Port Thread: 1" NPT-F (MW32, 36,40); 1¼" NPT-F (MW45, 50, 55)
  • Shaft Diameter: 1.969" / 50 mm
  • Pump Dimensions: 29.5" x 23" x 14.5"
  • Crankcase Oil Capacity: 9 litres
  • The MW Series Triplex Plunger Pump is available in 6 flows. The incorporated gearbox is available in 3 ratios, 1500, 1800 and 2200 rpm. It has double pressure packings, vertically fitted suction/delivery valves, splash lubrication and includes optimal drain/priming valve kit. Includes external gearbox positionable on left or right hand side of pump.
More Details

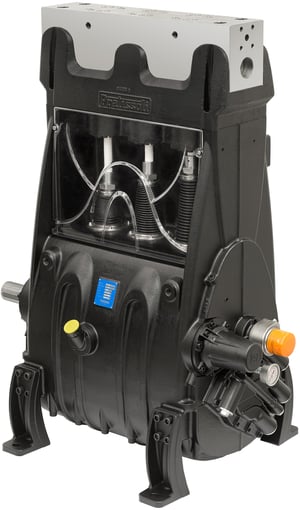

Pratissoli TR Series Plunger Pumps

Features:

TR30      37.8 gpm      17,404 psi      520 rpm
TR36      55.0 gpm      10,877 psi      520 rpm
TR50      105.0 gpm      5,801 psi      520 rpm
TR60      157.4 gpm      4,351 psi      520 rpm
TR70      206.0 gpm      3,190 psi      520 rpm
TR75      236.0 gpm      2,755 psi      520 rpm

Additional Features of Pratissoli TR Series Plunger Pumps:

  • The TR Series Triplex Plunger Pump is available in 7 flows. This new series of pumps features volume up to 236 gpm and pressure up to 22,000 psi, and is available in 3 gear ratios. They can be mounted vertically or horizontally. They have a double end crank shaft, internal gear reduction, forced oil lubrication with integrated cooler, filter and gauge.
  • Cast iron crank case, SS manifold, steel alloy crankshaft, forged steel connecting rods and connecting bushings, solid ceramic plungers.
  • Max. Inlet Pressure: 30 - 70  psi
  • Shaft diameter: 2.56"/65 mm
  • Stroke: 5.12"/130 mm
  • Pump Dimensions: 50" x 41" x 28.5"
More Details
Pratissoli SR Series Plunger Pumps

Features:

SR26, SR30, SR32, SR36, SR50, SR65 and SR75 Series Plunger Pumps

SR26      19.8 gpm      21,755 psi      520 rpm
SR30      26.0 gpm      17,404 psi      520 rpm
SR32      29.8 gpm      14,503 psi      520 rpm
SR36      37.8 gpm      11,603 psi      520 rpm
SR50      73.0 gpm        5,801 psi      520 rpm
SR65    123.0 gpm        3,425 psi      520 rpm
SR75    163.7 gpm        2,755 psi      520 rpm

Additional Features of Pratissoli Pratissoli SR Series Plunger Pumps

included SR26, SR30, SR32, SR36, SR50, SR65 and SR75 Series Plunger Pumps:

  • The SR Series Triplex Plunger Pump is available in 7 flows. This new series of pumps features volume up to 164 gpm and pressure up to 22,000 psi, and is available in 3 gear ratios. They can be mounted vertically or horizontally. They have a double end crank shaft, internal gear reduction, forced oil lubrication with integrated cooler, filter and gauge.
  • Cast iron crank case, SS manifold, steel alloy crankshaft, forged steel connecting rods and connecting bushings, solid ceramic plungers.
  • Max. Inlet Pressure: 30 - 70  psi
  • Shaft diameter: 2.56"/65 mm
  • Stroke: 3.54"/90 mm
  • Pump Dimensions: 50" x 41" x 28.5"
More Details
Pratissoli KF28A Series Plunger Pumps

Features of Pratissoli KF28A Series Plunger Pumps:

  • GPM= 24.4
  • PSI= 3050
  • RPM= 1000
  • Bore= 28 mm
  • Stroke= 50 mm
  • HP= 50 EBHP
  • Weight= 190 lbs.

Additional features of Pratissoli KF28A Series Plunger Pumps:

  • With solid shaft. Cast iron pump body with stainless steel manifold.
  • Crankshaft is nitrided, hardened and tempered alloy steel.
  • Forged steel connecting rods with anti-friction bearings.
  • Solid ceramic plungers.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1-1/2 NPT-F
  • Discharge Port Thread: 1 NPT-M
  • Shaft Diameter: 40 mm
  • Pump Dimensions: 526 mm x 367 mm x 253 mm
  • Crankcase Oil Capacity: 3.8 litres

71SS Series- 316 Stainless Steel Manifold and Wetted Parts

Product No. GPM PSI RPM Bore Stroke HP
SS7193 24.5 2900 1000 28mm 50mm 48.3
SS71106 28.0 2900 1000 30mm 50mm 55.0
SS71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SS71170 45.0 1600 900 40mm 50mm 36.0

71SN Series- 420 Stainless Steel Nickel Treated Manifold,  Wetted Parts made of Stainless Steel- No Brass Parts

Product No. GPM PSI RPM Bore Stroke HP
SN7193 24.5 2900 1000 28mm 50mm 48.3
SN1106 28.0 2900 1000 30mm 50mm 55.0
SN71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SN71170 45.0 1600 900 40mm 50mm 36.0

KFM- Light Mud Version

Product No. GPM PSI RPM Bore Stroke HP
KFMB40A 30 1450 600 40mm 50mm 30.0
More Details
Pratissoli KF30A Series Plunger Pumps

Features of Pratissoli KF30A Series Plunger Pumps:

  • GPM= 28.0
  • PSI= 2900
  • RPM= 1000
  • Bore= 30 mm
  • Stroke= 50 mm
  • HP= 55 EBHP
  • Weight= 190 lbs.

Additional features of Pratissoli KF30A Series Plunger Pumps:

  • With solid shaft. Cast iron pump body with stainless steel manifold.
  • Crankshaft is nitrided, hardened and tempered alloy steel.
  • Forged steel connecting rods with anti-friction bearings.
  • Solid ceramic plungers.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1-1/2  NPT-F
  • Discharge Port Thread: 1 NPT-M
  • Shaft Diameter: 40 mm
  • Pump Dimensions: 526 mm x 367 mm x 253 mm
  • Crankcase Oil Capacity: 3.8 litres

71SS Series- 316 Stainless Steel Manifold and Wetted Parts

Product No. GPM PSI RPM Bore Stroke HP
SS7193 24.5 2900 1000 28mm 50mm 48.3
SS71106 28.0 2900 1000 30mm 50mm 55.0
SS71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SS71170 45.0 1600 900 40mm 50mm 36.0



71SN Series- 420 Stainless Steel Nickel Treated Manifold,  Wetted Parts made of Stainless Steel- No Brass Parts

Product No. GPM PSI RPM Bore Stroke HP
SN7193 24.5 2900 1000 28mm 50mm 48.3
SN1106 28.0 2900 1000 30mm 50mm 55.0
SN71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SN71170 45.0 1600 900 40mm 50mm 36.0



KFM- Light Mud Version

Product No. GPM PSI RPM Bore Stroke HP
KFMB40A 30 1450 600 40mm 50mm 30.0
More Details
Pratissoli KF32A Series Plunger Pumps

Features of Pratissoli KF32A Series Plunger Pumps:

  • - GPM= 31.7
  • - PSI= 2610
  • - RPM= 1000
  • - Bore= 32 mm
  • - Stroke= 50 mm
  • - HP= 56 EBHP
  • - Weight= 190 lbs.

Additional features of Pratissoli KF32A Series Plunger Pumps:

  • - With solid shaft. Cast iron pump body with stainless steel manifold.
  • - Crankshaft is nitrided, hardened and tempered alloy steel.
  • - Forged steel connecting rods with anti-friction bearings.
  • - Solid ceramic plungers.
  • - Max. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1-1/2 NPT-F
  • - Discharge Port Thread: 1 NPT-M
  • - Shaft Diameter: 40 mm
  • - Pump Dimensions: 526 mm x 367 mm x 253 mm
  • - Crankcase Oil Capacity: 3.8 litres

71SS Series- 316 Stainless Steel Manifold and Wetted Parts

Product No. GPM PSI RPM Bore Stroke HP
SS7193 24.5 2900 1000 28mm 50mm 48.3
SS71106 28.0 2900 1000 30mm 50mm 55.0
SS71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SS71170 45.0 1600 900 40mm 50mm 36.0

71SN Series- 420 Stainless Steel Nickel Treated Manifold,  Wetted Parts made of Stainless Steel- No Brass Parts

Product No. GPM PSI RPM Bore Stroke HP
SN7193 24.5 2900 1000 28mm 50mm 48.3
SN1106 28.0 2900 1000 30mm 50mm 55.0
SN71153 32.2
36.2
40.0		 2300
2050
1900		 800
900
1000		 36mm
36mm
36mm		 50mm
50mm
50mm		 50.0
50.0
52.0
SN71170 45.0 1600 900 40mm 50mm 36.0

KFM- Light Mud Version

Product No. GPM PSI RPM Bore Stroke HP
KFMB40A 30 1450 600 40mm 50mm 30.0
More Details
Pratissoli KS28A Series Plunger Pumps

Features:

  • GPM= 29.1
  • PSI= 3650
  • Bore= 28 mm
  • Stroke= 50 mm
  • 1200 RPM
  • HP= 75 EBHP
  • Weight= 209 lbs.
  • Non-elastic crankshaft with flame hardened journals.
  • 420 stainless steel, nickel coated manifold, special aluminum alloy connecting rods, cast aluminum symmetrical crankcase.
  • Solid ceramic plunger, lubricated high and low pressure seal system.
  • Available with external gear reducer for direct drive applications.
  • Specify RPM when ordering.
  • Use NG for units without gearbox.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 NPT-F
  • Oil Capacity: 128.5 fl oz
  • Discharge Port Thread: 1-1/2 NPT-F
  • Shaft Diameter: 40 mm
  • Pump Dimensions: 23" x 19" x 10.3"
  • RPM: 1200

Construction:

Triplex plunger pump, available in 4 versions. Patent pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. Low-high pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas. Splash lubrication. External gearbox available in 3 ratios and positionable on left or right side of the pump. Flushing systems available on request on selected models.

More Details
Pratissoli KS40A Series Plunger Pumps

Features:

  • GPM= 59.7
  • PSI= 2000
  • RPM = 1200
  • Bore= 40 mm
  • Stroke= 50 mm
  • BHP= 81.8
  • Weight= 209 lbs.
  • Non-elastic crankshaft with flame hardened journals.
  • 420 stainless steel, nickel coated manifold, special aluminum alloy connecting rods, cast aluminum symmetrical crankcase.
  • Solid ceramic plunger, lubricated high and low pressure seal system.
  • Available with external gear reducer for direct drive applications.
  • Specify RPM when ordering.
  • Use NG for units without gearbox.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 NPT-F
  • Discharge Port Thread: 1-1/2 NPT-F
  • Oil Capacity: 128.5 fl oz
  • Shaft Diameter: 40 mm
  • Pump Dimensions: 23" x 19" x 10.3"
  • RPM: 1200

Construction:

Triplex plunger pump, available in 4 versions. Patent pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. Low-high pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas. Splash lubrication. External gearbox available in 3 ratios and positionable on left or right side of the pump. Flushing systems available on request on selected versions.



More Details
Pratissoli KS36A Series Plunger Pumps

Features:

  • GPM= 48.3
  • PSI= 2350
  • RPM= 1200
  • Bore= 36 mm
  • Stroke= 50 mm
  • BHP= 77.7
  • Weight= 209 lbs.
  • Non-elastic crankshaft with flame hardened journals.
  • 420 stainless steel, nickel coated manifold, special aluminum alloy connecting rods, cast aluminum symmetrical crankcase.
  • Solid ceramic plunger, lubricated high and low pressure seal system.
  • Available with external gear reducer for direct drive applications.
  • Specify RPM when ordering.
  • Use NG for units without gearbox.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 NPT-F
  • Discharge Port Thread: 1-1/2 NPT-F
  • Oil Capacity: 128.5 fl oz
  • Shaft Diameter: 40 mm
  • Pump Dimensions: 23" x 19" x 10.3"

Construction:

Triplex plunger pump, available in 4 versions. Patent pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. Low-high pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas. Splash lubrication. External gearbox available in 3 ratios and positionable on left or right side of the pump. Flushing systems available on request on selected versions.

More Details
Pratissoli KT24A Series Pumps

Features:

  • GPM= 16.3 or 13.5
  • PSI= 2900 or 3625
  • RPM= 1750 or 1450
  • Bore= 24 mm
  • Stroke= 26mm
  • HP= 32 EBHP or 33 EBHP
  • Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT LP Series has a high resistance light alloy crankcase, cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrided. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40kg
More Details
Pratissoli KT HP KT16A Series Pumps

Features:

  • GPM= 7.2
  • PSI= 7250
  • RPM= 1750
  • Bore= 16mm
  • Stroke= 26mm
  • HP= 36 EBHP
  • Triplex plunger pump, available in 4 flows. It has symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT HP Series has i high resistance, light alloy crankcase, Stainless Steel manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened tempered, and nitrided. The plunger guides are cast iron, nickel treated, with solid ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1" NPT-F
  • Discharge Port Thread: 1/2" NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/ 40kg
More Details
Pratissoli KT HP KT18A Series Pumps

Features:

  • - GPM= 9.2 or 7.6
  • - PSI= 5800 or 7250
  • - RPM= 1750 or 1450
  • - Bore= 18mm
  • - Stroke= 26mm
  • - HP= 36 EBHP or 37 EBHP
  • - Triplex plunger pump, available in 4 flows. It has symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • - The KT HP Series has i high resistance, light alloy crankcase, Stainless Steel manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened tempered, and nitrided. The plunger guides are cast iron, nickle treated, with solid ceramic plungers, and stainless steel valves.
  • - Max. Inlet Pressure: 45 psi
  • - Max. Fluid Temperature: 140° F
  • - Inlet Port Thread: 1" NPT-F
  • - Discharge Port Thread: 1/2" NPT-F
  • - Shaft Diameter: 1.181in/ 30mm
  • - Pump Dimensions: 15.55in x 13.4in x 8.35in
  • - Crankcase Oil Capacity: 2L
  • - Weight: 100lbs/ 40k
More Details
Pratissoli KT22A Series Pumps

Features:

  • GPM= 13.7 or 11.4
  • PSI= 3625 or 4640
  • RPM= 1750 or 1450
  • Bore= 22mm
  • Stroke= 26mm
  • HP= 34 EBHP or 36 EBHP
  • Triplex plunger pump, available in 4 flows. It has symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT HP Series has i high resistance, light alloy crankcase, Stainless Steel manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened tempered, and nitrided. The plunger guides are cast iron, nickel treated, with solid ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1" NPT-F
  • Discharge Port Thread: 1/2" NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs
More Details
Pratissoli KT30A Series Pumps

Features:

  • GPM= 25.5 or 21.1
  • PSI= 2030 or 2538
  • RPM= 1750 or 1450
  • Bore= 30 mm
  • Stroke= 26 mm
  • HP= 35 EBHP or 36 EBHP
  • Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT LP Series has a high resistance light alloy crankcase, cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrided. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs/
More Details
Pratissoli KT32A Series Pumps

Features:

  • GPM= 24.0
  • PSI= 2175
  • RPM= 1450
  • Bore= 32 mm
  • Stroke= 26 mm
  • HP= 35 EBHP
  • Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT LP Series has a high resistance light alloy crankcase, cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrided. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lb
More Details
Pratissoli KT36A Series Pumps

Features:

  • GPM= 33.1 or 30.4
  • PSI= 1813 or 1740
  • RPM= 1450 or 1580
  • Bore= 36 mm
  • Stroke= 26 mm
  • HP= 41 EBHP or 36 EBHP
  • Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT LP Series has a high resistance light alloy crankcase, cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrided. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs
More Details
Pratissoli KT40A Series Pumps

Features:

  • GPM= 37.5
  • PSI= 1450
  • RPM= 450
  • Bore= 40 mm
  • Stroke= 26 mm
  • HP= 36 EBHP
  • Triplex plunger pump, available in 6 flows. It has symmetrical power end design featuring top and bottom mounting holes for east left to right shaft conversion. It has the new generation pressure packing design with an integrated cooling system, orthogonally fitted valves, and splash lubrication.
  • The KT LP Series has a high resistance light alloy crankcase, cast iron manifold, tapered roller bearings, special anti-friction light alloy connecting rods, forged alloy steel crankshaft, hardened, tempered and nitrided. The plunger guides are cast iron, nickle treated, with ceramic plungers, and stainless steel valves.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 1 NPT-F
  • Discharge Port Thread: ½ NPT-F
  • Shaft Diameter: 1.181in/ 30mm
  • Pump Dimensions: 15.55in x 13.4in x 8.35in
  • Crankcase Oil Capacity: 2L
  • Weight: 100lbs
More Details
Pratissoli MKS40A Series Plunger Pumps

Features:

  • GPM= 48.7 or 48.2
  • PSI= 5800
  • RPM= 1800 or 1500
  • Bore= 40mm
  • Stroke= 72mm
  • HP= 154.0 EBHP or 160.0 EBHP
  • Weight= 392.0 lbs.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 (MK(S)40/45/50),  80 mm (MK55(S)/60/65)
  • Discharge Port Thread: 1 (MK(S)40/45/50), 1-1/2 (MK(S)55/60/65)
  • Shaft Diameter: 55.0 mm
  • Pump Dimensions: 829 mm x 646 mm x 362 mm (MK(S)40/45/50), 841 mm x 646 mm x 362 mm (MK(S)55/60/65)
  • Crankcase Oil Capacity: 14.0 litres
  • Low pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication. Includes external gear box in 1500 or 1800 rpm, can be positioned on left or right hand side of pump.
More Details
Pratissoli MKS45A Series Plunger Pumps

Features:

  • GPM= 61.6 or 61.0
  • PSI= 4350
  • RPM= 1800 or 1500
  • Bore= 45 mm
  • Stroke= 72mm
  • HP= 147.0 EBHP or 152.0 EBHP
  • Weight= 392.0 lbs.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 (MK(S)40/45/50),  80 mm (MK55(S)/60/65)
  • Discharge Port Thread: 1 (MK(S)40/45/50), 1-1/2 (MK(S)55/60/65)
  • Shaft Diameter: 55.0 mm
  • Pump Dimensions: 829 mm x 646 mm x 362 mm (MK(S)40/45/50), 841 mm x 646 mm x 362 mm (MK(S)55/60/65)
  • Crankcase Oil Capacity: 14.0 litre
  • Low pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication. Includes external gear box in 1500 or 1800 rpm, can be positioned on left or right hand side of pump.
More Details
Pratissoli MKS55A Series Plunger Pumps

Features:

  • GPM= 92.0 or 91.1
  • PSI= 2900
  • RPM= 1800 or 1500
  • Bore= 55 mm
  • Stroke= 72mm
  • HP= 149.0 EBHP or 152.0 EBHP
  • Weight= 405.0 lbs.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 (MK(S)40/45/50), 80 mm (MK55(S)/60/65)
  • Discharge Port Thread: 1 (MK(S)40/45/50), 1-1/2 (MK(S)55/60/65)
  • Shaft Diameter: 55.0 mm
  • Pump Dimensions: 829 mm x 646 mm x 362 mm (MK(S)40/45/50), 841 mm x 646 mm x 362 mm (MK(S)55/60/65)
  • Crankcase Oil Capacity: 14.0 litre
  • Low pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication. Includes external gear box in 1500 or 1800 rpm, can be positioned on left or right hand side of pump.
More Details
Pratissoli MKS60A Series Plunger Pumps

Features:

  • GPM= 109.5 or 108.4
  • PSI= 2500
  • RPM= 1800 or 1500
  • Bore= 60 mm
  • Stroke= 72 mm
  • HP= 147.0 EBHP or 152.0 EBHP
  • Weight= 405.0 lbs.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 (MK(S)40/45/50),  80 mm (MK55(S)/60/65)
  • Discharge Port Thread: 1 (MK(S)40/45/50), 1-1/2 (MK(S)55/60/65)
  • Shaft Diameter: 55.0 mm
  • Pump Dimensions: 829 mm x 646 mm x 362 mm (MK(S)40/45/50), 841 mm x 646 mm x 362 mm (MK(S)55/60/65)
  • Crankcase Oil Capacity: 14.0 litre
  • Low pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication. Includes external gear box in 1500 or 1800 rpm, can be positioned on left or right hand side of pump.
More Details
Pratissoli MKS65A Series Plunger Pumps

Features:

  • GPM= 128.5 or 127.0
  • PSI= 2175
  • RPM= 1800 or 1500
  • Bore= 65 mm
  • Stroke= 72 mm
  • HP= 148.0 EBHP or 152.0 EBHP
  • Weight= 405.0 lbs.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 (MK(S)40/45/50),  80 mm (MK55(S)/60/65)
  • Discharge Port Thread: 1 (MK(S)40/45/50), 1-1/2 (MK(S)55/60/65)
  • Shaft Diameter: 55.0 mm
  • Pump Dimensions: 829 mm x 646 mm x 362 mm (MK(S)40/45/50), 841 mm x 646 mm x 362 mm (MK(S)55/60/65)
  • Crankcase Oil Capacity: 14.0 litres
  • Low pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication. Includes external gear box in 1500 or 1800 rpm, can be positioned on left or right hand side of pump





More Details
Pratissoli MK60A Series Plunger Pumps

Features:

  • GPM= 88.2 or 91.4
  • PSI= 2500
  • RPM= 1800 or 1500
  • Bore= 60 mm
  • Stroke= 72 mm
  • HP= 153.0 EBHP
  • Weight= 405.0 lbs.
  • Max. Inlet Pressure: 45 psi
  • Max. Fluid Temperature: 140° F
  • Inlet Port Thread: 2 (MK(S)40/45/50),  80 mm (MK55(S)/60/65)
  • Discharge Port Thread: 1 (MK(S)40/45/50), 1-1/2 (MK(S)55/60/65)
  • Shaft Diameter: 55.0 mm
  • Pump Dimensions: 829 mm x 646 mm x 362 mm (MK(S)40/45/50), 841 mm x 646 mm x 362 mm (MK(S)55/60/65)
  • Crankcase Oil Capacity: 14.0 litre
  • Low pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication. Includes external gear box in 1500 or 1800 rpm, can be positioned on left or right hand side of pump.
More Details
