Hot Water Electric

MPU1904HT Electric Hot Water Pressure Washers

2,000 PSI @ 4.0 GPM – 5 HP Electric 240 V Motor

Electric motor provide high power cleaning & reliability
Interpump High Temperature Triplex Plunger Pump
External Adjustable Unloader
190 Degree Thermal Pump Protection
Interpump brass pump heads deliver long lasting performance & hassle-free operation
Ceramic plungers and thermal protection define tough industrial standard and added safety
7m Power Cord
Quick-connect nozzle set included for various applications
CSA Certified

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Motor Speed:	1,750 RPM
Voltage:	240 V 1 ph
Amperage:	23 A
Dimensions:	28″ x 21″ x 14″
Weight:	142 LBS

More Details

Dynablast H2015DEF1 Hot Water Pressure Washer

1,500 PSI @ 2 GPM - 2 HP 115 V Electric Motor

Direct Drive
Electric
Fuel Oil Heated
2 HP 115 V 20 AMP 3,450 RPM
Interpump Triplex Plunger Pump
172,000 BTU Burner
Heat Rise 2 GPM @ 160F
High-Pressure Blow Off Valve
Assembled in Canada

Specifications

Operating Pressure:	1,500 PSI
Volume:	2 GPM
Motor:	2 HP Electric
Pump Speed:	3,450 RPM
BTU:	172,000
Burner Fuel:	Fuel Oil
Voltage:	115 V
Amperage:	20 A
Dimensions:	42″ x 26″ x 40″
Weight:	290 LBS

More Details

Dynablast H3025DEF1 Hot Water Pressure Washer

2,500 PSI @ 3 GPM - 5 HP 230 V Electric Motor

Direct Drive
5 HP 230 V 30 amp 3,450 RPM
Interpump Triplex Plunger Pump
300,000 BTU Burner
Heat Rise 3 GPM @ 155F
230 Volt Burner
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	2,500 PSI
Volume:	3 GPM
Motor:	5 HP Electric
Pump Speed:	3,450 RPM
BTU:	300,000
Burner Fuel:	Fuel Oil
Voltage:	230 V
Amperage:	30 A
Dimensions:	42″ x 28″ x 43″
Weight:	420 LBS

More Details

Dynablast H3030DEF1 Hot Water Pressure Washer

3,000 PSI @ 3 GPM - 7.5 HP 240 V Electric Motor

Direct Drive
7.5 HP 240 V 35 amp 1,750 RPM
Interpump Triplex Plunger Pump
300,000 BTU Burner
Heat Rise 3 GPM @ 150F
230 Volt Burner
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	3 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,750 RPM
BTU:	300,000
Burner Fuel:	Fuel Oil
Voltage:	240 V
Amperage:	35 A
Dimensions:	42″ x 28″ x 43″
Weight:	425 LBS

More Details

Dynablast H3030DEF3D Hot Water Pressure Washer

3,000 PSI @ 3 GPM - 6 HP 575 V Electric Motor

Direct Drive
6 HP 575 V 7.5 amp 1,750 RPM
Interpump Triplex Plunger Pump
300,000 BTU Burner
Heat Rise 3 GPM @ 150F
230 Volt Burner
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	3 GPM
Motor:	6 HP Electric
Pump Speed:	1,750 RPM
BTU:	300,000
Burner Fuel:	Fuel Oil
Voltage:	575 V
Amperage:	7.5 A
Dimensions:	42″ x 28″ x 43″
Weight:	425 LBS

More Details

Dynablast H3525BEF1 Hot Water Pressure Washer

2,500 PSI @ 3.5 GPM - 6 HP 230 V Electric Motor

Belt Drive
6 HP 230 V 28 amp 1,750 RPM
Pump Speed 1,450 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
315,000 BTU Burner
Heat Rise 3.5 GPM @ 140F
230 Volt Burner
Assembled in Canada

Specifications

Operating Pressure:	2,500 PSI
Volume:	3.5 GPM
Motor:	6 HP Electric
Pump Speed:	1,450 RPM
BTU:	315,000
Burner Fuel:	Fuel Oil
Voltage:	230 V
Amperage:	28 A
Dimensions:	54" x 31" x 46"
Weight:	580 LBS

More Details

Dynablast H4030BEF1 Hot Water Pressure Washer

3,000 PSI @ 3.8 GPM - 7.5 HP 230 V Electric Motor

Belt Drive
7.5 HP Electric 230 V 32 A 1,750 RPM
1,450 RPM Pump Speed
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 GPM @ 140F
230 Volt Burner
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	3.8 GPM
Motor:	7.5 HP Electric
Motor Speed:	1,750 RPM
Voltage:	230 V
Phase:	1 PH
Amperage:	32 A
BTU:	315,000 BTU
Dimensions:	54" x 31" x 46"
Weight:	600 LBS

More Details

Dynablast H4030BEF3A Hot Water Pressure Washer

3,000 PSI @ 3.8 GPM - 7.5 HP 208 V Electric Motor

Belt Drive
7.5 HP 208 V 3 ph 30 A 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
315,000 BTU Burner
Heat Rise 4 GPM @ 140F
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	3.8 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	315,000
Burner Fuel:	Fuel Oil
Voltage:	208 V
Amperage:	30 A
Dimensions:	54" x 31" x 46"
Weight:	600 LBS

More Details

Dynablast H4030BEF3B Hot Water Pressure Washer

3,000 PSI @ 3.8 GPM - 7.5 HP 230 V Electric Motor

Belt Drive
7.5 HP 230 V 3 ph 22 A 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
315,000 BTU Burner
Heat Rise 4 GPM @ 140F
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	3.8 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	315,000
Burner Fuel:	Fuel Oil
Voltage:	230 V
Amperage:	22 A
Dimensions:	54" x 31" x 46"
Weight:	600 LBS

More Details

Dynablast H4030BEF3C Hot Water Pressure Washer

3,000 PSI @ 3.8 GPM - 7.5 HP 460 V Electric Motor

Belt Drive
7.5 HP 460 V 3 ph 12 A 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
315,000 BTU Burner
Heat Rise 4 GPM @ 140F
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	3.8 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	315,000
Burner Fuel:	Fuel Oil
Voltage:	230 V
Amperage:	12 A
Dimensions:	54" x 31" x 46"
Weight:	600 LBS

More Details

Dynablast H4030BEF3D Hot Water Pressure Washer

3,000 PSI @ 3.8 GPM - 7.5 HP 575 V Electric Motor

Belt Drive
7.5 HP, 575 V, 3 ph, 10 A, 1,750 RPM
Interpump Triplex Plunger Pump
315,000 BTU Burner
Heat Rise 4 GPM @ 140F
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	3.8 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	315,000
Burner Fuel:	Fuel Oil
Voltage:	575 V
Amperage:	10 A
Dimensions:	54" x 31" x 46"
Weight:	600 LBS

More Details

Dynablast H2015DEP1 Hot Water Pressure Washer

1,500 PSI @ 2 GPM - 2 HP 115 V Electric Motor

Direct Drive
2 HP Electric Motor 115 V 20 amp 3,450 RPM
Interpump Triplex Plunger Pump
197,000 BTU Burner
Heat Rise 2 GPM @ 140F
Milli-Volt Burner Control
Assembled in Canada

Specifications

Operating Pressure:	1,500 PSI
Volume:	2 GPM
Motor:	2 HP Electric
Pump Speed:	3,450 RPM
BTU:	197,000
Burner Fuel:	Propane
Voltage:	115 V
Amperage:	20 A
Dimensions:	43" x 28" x 26"
Weight:	350 LBS

More Details

Dynablast UHE422BEN1 Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 230 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump.
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	26 A
Dimensions:	47" x 23" x 41"
Weight:	560 LBS

More Details

Dynablast UHE430BEN1 Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	32 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEN1 Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	32 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE530BEN1 Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	42 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast H3823BEN1 Hot Water Pressure Washer

2,300 PSI @ 3.8 GPM - 6 HP 230 V Electric Motor

Belt Drive
6 HP 1,750 RPM 230 V 1ph
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.8 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,300 PSI
Volume:	3.8 GPM
Motor:	6 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	30 A
Dimensions:	47" x 23" x 41"
Weight:	535 LBS

More Details

Dynablast H3620BEN1 Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 230 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	13 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H4030BEN1 Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 230 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	22 A
Dimensions:	47" x 23" x 41"
Weight:	535 LBS

More Details

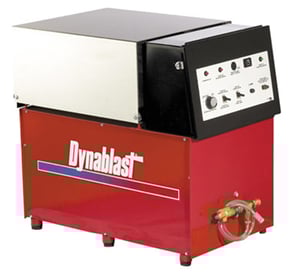

Dynablast H5030BEN1 Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	230 V
Amperage:	42 A
Dimensions:	47" x 23" x 41"
Weight:	560 LBS

More Details

Dynablast H2015BEE3C Hot Water Pressure Washer

1,500 PSI @ 2 GPM - 2 HP 460 V Electric Motor

Belt Drive
All Electric Powered & Heated
1,500PSI @ 2.0 GPM
2 HP 1,750 RPM
460 V 3ph
36 KW
Heat Rise 2 GPM @ 130F
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Unit Dimensions 34" x 22" x 31"
480 lbs
Assembled in Canada

Specifications

Operating Pressure:	1,500 PSI
Volume:	2 GPM
Motor:	2 HP Electric
Pump Speed:	1,400 RPM
KW:	36 (130° F)
Heater:	Electric
Voltage:	460 V
Amperage:	48 A
Dimensions:	34" x 22" x 31"
Weight:	480 LBS

More Details

Dynablast H3123BEE363C Hot Water Pressure Washer

2,300 PSI @ 3.1 GPM - 5 HP 460 V Electric Motor

Belt Drive
5 HP 1,750 RPM
460 V 3ph
36 KW
Heat Rise 3.1 GPM @ 90F
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Unit Dimensions 34" x 22" x 31"
490 lbs
Assembled in Canada

Specifications

Operating Pressure:	2,300 PSI
Volume:	3.1 GPM
Motor:	4 HP Electric
Pump Speed:	1,400 RPM
KW:	36 (130° F)
Heater:	Electric
Voltage:	460 V
Amperage:	51 A
Dimensions:	34" x 22" x 31"
Weight:	490 LBS

More Details

Dynablast H3123BEE483D Hot Water Pressure Washer

2,300 PSI @ 3.1 GPM - 5 HP 575 V Electric Motor

575 V, 3ph
48 KW
Heat Rise 3.1 GPM @ 130F
Belt Drive
Electric
Carbon Steel Coil
Interpump Triplex Plunger Pump
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	2,300 PSI
Volume:	3.1 GPM
Motor:	5 HP Electric
Pump Speed:	1,400 RPM
KW:	48 (130° F)
Heater:	Electric
Voltage:	575 V
Amperage:	53 A
Dimensions:	34" x 22" x 31"
Weight:	490 LBS

More Details

Dynablast H3620BEE723C Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 460 V Electric Motor

Belt Drive
5 HP 1,750 RPM
460 V 3ph
72 KW
Heat Rise 3.6 GPM @ 140F
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Unit Dimensions 34″ x 22″ x 31″
490 lbs
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,400 RPM
KW:	72 KW
Heater:	Electric
Voltage:	460 V
Amperage:	96 A
Dimensions:	34" x 22" x 31"
Weight:	490 LBS

More Details

Dynablast H4030BEE483D Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 575 V Electric Motor

Belt Drive
Electric
Carbon Steel Coil
48 KW
Heat Rise 4 GPM @ 75ºF
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,400 RPM
KW:	48
Heater:	Electric
Voltage:	575 V
Amperage:	56 A
Dimensions:	34" x 22" x 31"
Weight:	500 LBS

More Details

Dynablast H5030BEE3C Hot Water Pressure Washer

3,000 PSI @ 5 GPM - 7.5 HP 460 V Electric Motor

Belt Drive
10 HP 1,750 RPM
460 V 3ph
72 KW
Heat Rise 5 GPM @ 110F
Interpump Triplex Plunger Pump
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,400 RPM
KW:	72
Heater:	Electric
Voltage:	460 V
Amperage:	105 A
Dimensions:	34" x 22" x 31"
Weight:	520 LBS

More Details

Dynablast H3620BEE3CSS/DSS Hot Water Pressure Washer

Belt Drive All Electric Powered & Heated is 2000PSI @ 3.6GPM and features:

Baldor 5hp 1750 rpm
460V 3ph or 575V 3ph
72 KW
Heat Rise 3.6 gpm @ 140F
Stainless Steel Coils
Interpump Triplex Plunger Pump
Pump Speed 1400 rpm
Time Delay Shutdown
Unit Dimensions 34" x 22" x 31"
490 lbs
Assembled in Canada

Applications for the Dynablast H3620BEE3CSS/DSS Hot Water Pressure Washer include:

Industrial Cleaning
In-Plant Cleaning
Food Processing

Specifications for the Dynablast H3620BEE3CSS/DSS Hot Water Pressure Washer include:

Stainless Steel Coil
5 HP, 3 ph, 460 V / 5 HP, 3 ph, 575 V
72 kV, 96 A / 72 kV, 77 A
3.6 gpm, 20

More Details

Dynablast H4030BEE3C Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 460 V Electric Motor

7.5 HP 1,750 RPM
Belt Drive
Electric
460 V 3ph
72 KW
Heat Rise 4 GPM @ 130F
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,400 RPM
KW:	72
Heater:	Electric
Voltage:	460 V
Amperage:	98 A
Dimensions:	34" x 22" x 31"
Weight:	500 LBS

More Details

Dynablast S1511BEE3C Steam Washer

110 PSI @ 1.5 GPM - 0.75 HP 460 V Electric Motor

Interpump Triplex Plunger Pump
Belt Drive
Output Temp 305°F
Assembled in Canada

Specifications

Operating Pressure:	110 PSI
Volume:	1.5 GPM
Motor:	0.75 HP Electric
Pump Speed:	650 RPM
KW:	72 KW
Heater:	Electric
Voltage:	460 V
Amperage:	93 A
Dimensions:	34" x 22" x 31"
Weight:	450 LBS

More Details

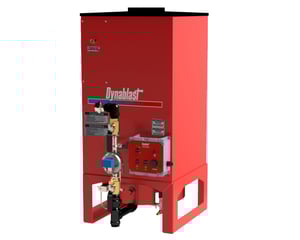

Dynablast MHG400N/P Hot Water Heater Module

3,500 PSI @ 4.0 GPM - 350,000 BTU Milli-Volt Valve NG Burner

Vent Type B
Heat Rise 4 GPM @ 150 F
Assembled in Canada

Specifications

Operating Pressure:	3,500 PSI
Volume:	4 GPM
BTU:	350,000
Burner Fuel:	Natural Gas
Gas Valve Control:	Milli-Volt
Dimensions:	41″ x 18″ x 47″
Weight:	340 LBS

More Details

Dynablasat H7120BEE3C Hot Water Pressure Washer

2,000 PSI @ 7.1 GPM - 10 HP 460 V Electric Motor

3 Phase
Carbon Steel Coil
Heat Rise 7.1 GPM @ 75F
Interpump Triplex Plunger Pump
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	7.1 GPM
Motor:	10 HP Electric
Pump Speed:	1,400 RPM
KW:	72 KW
Heater:	Electric
Voltage:	460 V
Amperage:	105 A
Dimensions:	34″ x 22″ x 31″
Weight:	520 LBS

More Details

Dynablast MHG400N/P-24V Hot Water Heater Module

3,500 PSI @ 4.0 GPM - 350,000 BTU 24 Volt NG Burner

Vent Type B
24 Volt Gas Valve Control
Heat Rise 4 GPM @ 150F
Assembled in Canada

Specifications

Operating Pressure:	3,500 PSI
Volume:	4 GPM
BTU:	350,000
Burner Fuel:	Natural Gas
Gas Valve Control:	24 V Electric
Dimensions:	41″ x 18″ x 47″
Weight:	380 LBS

More Details

Dynablast MHGSQ35N Hot Water Heater Module

3,500 PSI @ 4.0 GPM - 345,000 BTU Milli-Volt Valve NG Burner

Vent Type A
Milli-Volt Gas Valve Control
Heat Rise 4 gpm @140F
Assembled in Canada

Specifications

Operating Pressure:	3,500 PSI
Volume:	4 GPM
BTU:	345,000
Burner Fuel:	Natural Gas
Gas Valve Control:	Milli-volt
Dimensions:	24″ x 22″ x 44″
Weight:	290 LBS

More Details

Dynablast MHGSQ35NEI Hot Water Heater Module

3,500 PSI @ 4.0 GPM - 345,000 BTU 24 Volt NG Burner

Vent Type A
24 Volt Electronic Ignition Gas Valve Control
Heat Rise 4 GPM @140F
Assembled in Canada

Specifications

Operating Pressure:	3,500 PSI
Volume:	4 GPM
BTU:	345,000
Burner Fuel:	Natural Gas
Gas Valve Control:	24 V Electric
Dimensions:	24″ x 22″ x 44″
Weight:	290 LBS

More Details

Dynablast MHGE500NSQ Hot Water Heater Module

350,000 BTU - 3500 PSI - Natural Gas

355 000 BTU Burner
Vent Type B
24 Volt Electronic Ignition Gas Valve Control
Heat Rise 4 gpm @140F
Assembled in Canada

Specifications

Fuel:	Natural Gas
Operating Pressure:	3500 PSI
BTU:	350,000
Dimensions:	24″ x 22″ x 47″
Weight:	310 LBS

More Details

MPU5004HT Electric Hot Water Pressure Washers

500 PSI @ 4.0 GPM - 1.5 HP Electric 120 V Motor

Electric motor provide high power cleaning & reliability
Quick-connect nozzle set included for various applications
Interpump brass pump heads deliver long lasting performance & hassle-free operation
Ceramic plungers and thermal protection define tough industrial standard and added safety
Interpump High Temperature Triplex Plunger Pump
External Adjustable Unloader
190 Degree Thermal Pump Protection
7m Power Cord
CSA Certified

Specifications

Operating Pressure:	500 PSI
Volume:	4 GPM
Motor:	1.5 HP Electric
Motor Speed:	1,750 RPM
Voltage:	120 V 1 ph
Amperage:	13.6 A
Dimensions:	28″ x 21″ x 14″
Weight:	75 LBS

More Details

Kodiak KEH2500EF Hot Water Pressure Washer 2500 psi

2,500 PSI @ 3.0 GPM - 5 HP 230 V Electric Motor

5 HP Electric Induction Motor
Interpump Triplex Plunger Pump
300,000 BTU
Diesel 230V Burner
Built In Low Pressure Injector Chemical
Built-in Fuel Oil Gauge and Hour Meter
Powder Coated Steel Frame
13" Pneumatic Tires
50' Wired Braided Hose
CSA Approved

Specifications

Operating Pressure:	2,500 PSI
Volume:	3 GPM
Motor:	5 HP Electric
BTU:	300,000
Burner Fuel:	Diesel
Voltage:	230 V
Dimensions:	42″ x 28″ x 43″
Weight:	420 LBS

More Details

Dynablast H3525BEF1A Hot Water Pressure Washer

2,500 PSI @ 3.5 GPM - 6 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Belt Drive
Electric Powered
Fuel Oil Heated
315,000 BTU Burner
Heat Rise 3.5 GPM @ 140F
230 Volt Burner
Assembled in Canada

Specifications

Operating Pressure:	2,500 PSI
Volume:	3.5 GPM
Motor:	6 HP Electric
Pump Speed:	1,450 RPM
BTU:	315,000
Burner Fuel:	Fuel Oil
Voltage:	230 V
Amperage:	28 A
Dimensions:	54" x 31" x 46"
Weight:	580 LBS

More Details

Dynablast H2015BEE3D Hot Water Pressure Washer

1,500 PSI @ 2 GPM - 2 HP 575 V Electric Motor

Belt Drive
All Electric Powered & Heated
1,500 PSI @ 2.0 GPM
2 HP 1,750 RPM
575 V 3ph
36 KW
Heat Rise 2 GPM @ 130F
Interpump Triplex Plunger Pump
Pump Speed 1,400 rpm
Time Delay Shutdown
Unit Dimensions 34" x 22" x 31"
480 lbs
Assembled in Canada

Specifications:

Operating Pressure:	1,500 PSI
Volume:	2 GPM
Motor:	2 HP Electric
Pump Speed:	1,400 RPM
KW:	36 (130° F)
Heater:	Electric
Voltage:	575 V
Amperage:	38 A
Dimensions:	34″ x 22″ x 31″
Weight:	480 LBS

More Details

Dynablast H3123BEE363D Hot Water Pressure Washer

2,300 PSI @ 3.1 GPM - 5 HP 575 V Electric Motor

Belt Drive
5 HP 1,750 RPM
460 V 3ph or 575 V 3ph
36 KW
Heat Rise 3.1 GPM @ 90F
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Unit Dimensions 34" x 22" x 31"
Assembled in Canada

Specifications:

Operating Pressure:	2,300 PSI
Volume:	3.1 GPM
Motor:	5 HP Electric
Pump Speed:	1,400 RPM
KW:	36 (130° F)
Heater:	Electric
Voltage:	575 V
Amperage:	41 A
Dimensions:	34″ x 22″ x 31″
Weight:	490 LBS

More Details

Dynablast H3620BEE723D Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 460 V Electric Motor

Belt Drive
5 HP 1,750 RPM
460 V 3ph
72 KW
Heat Rise 3.6 GPM @ 140F
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Assembled in Canada

Specifications:

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,400 RPM
KW:	72 KW
Heater:	Electric
Voltage:	460 V
Amperage:	96 A
Dimensions:	34″ x 22″ x 31″
Weight:	490 LBS

More Details

Dynablast H4030BEE3D Hot Water Pressure Washer

Belt Drive
7.5 HP 1,750 RPM
575V 3ph
72 KW
Heat Rise 4 GPM @ 180F
Interpump Triplex Plunger Pump
Pump Speed 1,400 RPM
Time Delay Shutdown
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,400 RPM
KW:	72
Heater:	Electric
Voltage:	575 V
Amperage:	80 A
Dimensions:	34″ x 22″ x 31″
Weight:	500 LBS

More Details

Dynablast H5030BEE3D Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 575 V Electric Motor

3 Phase
Belt Drive
Heat Rise 5 GPM @ 110F
Interpump Triplex Plunger Pump
Carbon Steel Coil
Time Delay Shutdown
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,400 RPM
KW:	72 KW
Heater:	Electric
Voltage:	575 V
Amperage:	82 A
Dimensions:	34″ x 22″ x 31″
Weight:	520 LBS

More Details

Dynablast H7120BEE3D Hot Water Pressure Washer

2,000 PSI @ 7.1 GPM - 10 HP 575 V Electric Motor

10 HP 1,750 RPM
575 V 3ph
72 KW
Heat Rise 7.1 GPM @ 75F
Interpump Triplex Plunger Pump
Time Delay Shutdown

Specifications

Operating Pressure:	2000 PSI
Volume:	7.1 GPM
Motor:	10 HP Electric
Pump Speed:	1,400 RPM
KW:	72 KW
Heater:	Electric
Voltage:	575 V
Amperage:	82 A
Dimensions:	34″ x 22″ x 31″
Weight:	520 LBS

More Details

Dynablast S1511BEE3D Steam Washer

110 PSI @ 1.5 GPM - 0.75 HP 575 V Electric Motor

Interpump Triplex Plunger Pump
Output Temp 305°F
Assembled in Canada

Specifications

Operating Pressure:	110 PSI
Volume:	1.5 GPM
Motor:	0.75 HP Electric
Pump Speed:	650 RPM
KW:	72 KW
Heater:	Electric
Voltage:	575 V
Amperage:	74 A
Dimensions:	34″ x 22″ x 31″
Weight:	450 LBS

More Details

Dynablast MHGE500PSQ Hot Water Heater Module

3,500 PSIS @ 4.0 GPM - 345,000 BTU 24 Volt Propane Burner

Vent Type B
24 Volt Electronic Ignition Gas Valve Control
Heat Rise 4 gpm @140F
Assembled in Canada

Specifications

Operating Pressure:	3,500 PSI
Volume:	4 GPM
BTU:	345,000
Burner Fuel:	Propane
Gas Valve Control:	24 V Electric
Dimensions:	24″ x 22″ x 47″
Weight:	310 LBS

More Details

Dynablast MHGSQ35P Hot Water Heater Module

3,500 PSI @ 4.0 GPM - 345,000 BTU Milli-Volt Valve Propane Burner

Vent Type A
Milli-Volt Gas Valve Control
Heat Rise 4 gpm @140F
Assembled in Canada

Specifications

Operating Pressure:	3,500 PSI
Volume:	4 GPM
BTU:	345,000
Burner Fuel:	Propane
Gas Valve Control:	Milli-volt
Dimensions:	24″ x 22″ x 44″
Weight:	290 LBS

More Details

Dynablast UHE422BEP1 Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 230 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump.
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	26 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEN3A Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5HP 208 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	208 V
Amperage:	14 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEP3A Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 208 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump.
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	208 V
Amperage:	14 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEN3B Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 230 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	13 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEP3B Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 230 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Baldor 5 HP, 1 750 rpm.
Interpump Triplex Plunger Pump.
Time Delay Shutdown
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	13 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEP3C Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 460 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Interpump Triplex Plunger Pump.
Time Delay Shutdown
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	460 V
Amperage:	7 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEN3C Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 460 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump.
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	460 V
Amperage:	7 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEP3D Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 575 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump.
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	575 V
Amperage:	5 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE422BEN3D Hot Water Pressure Washer

2,000 PSI @ 4.0 GPM - 5 HP 575 V Electric Motor

Upstream Chemical Injector
Quick Connect Hose Connectors
Heavy Duty Steel Frame
Separate Unloader
B-Vent Rated
Time Delay Shutdown
Interpump Triplex Plunger Pump.
Heat Rise 4 gpm @ 150° F
24 V Electronic Ignition Gas Valve Control.
Assembled in Canada.
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	4 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	575 V
Amperage:	5 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast UHE430BEP1 Hot Water Pressure Washer

3,000 PSI @ 4.0 GP, - 7.5 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	32 A
Dimensions:	47″ x 23″ x 41″
Weight:	580 LBS

More Details

Dynablast UHE430BEP3A Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 208 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	208 V
Amperage:	22 A
Dimensions:	47″ x 23″ x 41″
Weight:	580 LBS

More Details

Dynablast UHE430BEN3A Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 208 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	208 V
Amperage:	22 A
Dimensions:	47″ x 23″ x 41″
Weight:	580 LBS

More Details

Dynablast UHE430BEP3B Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	22 A
Dimensions:	47″ x 23″ x 41″
Weight:	580 LBS

More Details

Dynablast UHE430BEN3B Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	22 A
Dimensions:	47″ x 23″ x 41″
Weight:	580 LBS

More Details

Dynablast UHE430BEN3C Hot Water Pressure Washer

3,000 PSI @ 4.0 GP, - 7.5 HP 460V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	460 V
Amperage:	11 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE430BEP3C Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 460 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	460 V
Amperage:	11 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE430BEN3D Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 575 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150°F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	575 V
Amperage:	8 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE430BEP3D Hot Water Pressure Washer

3,000 PSI @ 4.0 GPM - 7.5 HP 575 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 4 gpm @ 150F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	575 V
Amperage:	8 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEP3A Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 208 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	208 V
Amperage:	22 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEP1 Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 230 V Electric Motor

Baldor 7.5 HP, 1750 rpm
Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	32 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEN3A Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 208 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 gpm @ 125°F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	208 V
Amperage:	22 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEN3B Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	22 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEP3B Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	22 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEP3C Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 460 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	460 V
Amperage:	11 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEN3C Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 460 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	460 V
Amperage:	11 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEN3D Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 575 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	575 V
Amperage:	8 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE520BEP3D Hot Water Pressure Washer

2,000 PSI @ 5.0 GPM - 7.5 HP 575 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
Vent Type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	2,000 PSI
Volume:	5 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	575 V
Amperage:	8 A
Dimensions:	47" x 23" x 41"
Weight:	580 LBS

More Details

Dynablast UHE530BEP1 Hot Water Pressure Washer

3000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	42 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEP3A Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 208 V Electric Motor

Baldor 10 HP, 1750 rpm
Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	208 V
Amperage:	30 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEN3A Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 208 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	208 V
Amperage:	42 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEP3B Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	30 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEN3B Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	28 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEN3C Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 460 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	460 V
Amperage:	14 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEP3C Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 460 V Electric Motor

Baldor 10 HP, 1750 rpm
Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	460 V
Amperage:	14 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEP3D Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 575 V Electric Motor

Baldor 10 HP, 1750 rpm
Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Propane
Voltage:	208 V
Amperage:	11 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast UHE530BEN3D Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 575 V Electric Motor

Baldor 10 HP, 1750 rpm
Interpump Triplex Plunger Pump
Time Delay Shutdown
350 000 BTU Burner
Heat Rise 5 gpm @ 125F
24V Electronic Ignition Gas Valve Control
High Pressure Blow-Off Valve
Vent type B
Assembled in Canada
Optional High Pressure Soap Kit Available

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	350,000
Burner Fuel:	Natural Gas
Voltage:	575 V
Amperage:	11 A
Dimensions:	47" x 23" x 41"
Weight:	600 LBS

More Details

Dynablast H3620BEP1 Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 230 V Electric Motor

Belt Drive
5 HP, 1,750 rpm
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	13 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEP3A Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 208 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	208 V
Amperage:	14 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEN3A Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 208 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	208 V
Amperage:	14 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEN3B Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 230 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	13 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEP3B Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 230 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	13 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEP3C Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 460 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	460 V
Amperage:	7 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEN3C Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 460 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	460 V
Amperage:	7 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEN3D Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 575 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	575 V
Amperage:	5 A
Dimensions:	47" x 23" x 41"
Weight:	530 LBS

More Details

Dynablast H3620BEP3D Hot Water Pressure Washer

2,000 PSI @ 3.6 GPM - 5 HP 575 V Electric Motor

Belt Drive
5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.6 GPM @ 140F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	2,000 PSI
Volume:	3.6 GPM
Motor:	5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	575 V
Amperage:	5 A
Dimensions:	47″ x 23″ x 41″
Weight:	530 LBS

More Details

Dynablast H3823BEP1 Hot Water Pressure Washer

2,300 PSI @ 3.8 GPM - 6 HP 230 V Electric Motor

Belt Drive
6 HP 1,750 RPM 230 V 1ph
Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 3.8 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	2,300 PSI
Volume:	3.8 GPM
Motor:	6 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	30 A
Dimensions:	47″ x 23″ x 41″
Weight:	535 LBS

More Details

Dynablast H4030BEP1 Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 230 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	22 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEP3A Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 208 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	208 V
Amperage:	32 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEN3A Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 208 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	208 V
Amperage:	32 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEP3B Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 230 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	230 V
Amperage:	22 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEN3B Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 230 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	230 V
Amperage:	22 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEN3C Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 460 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	460 V
Amperage:	11 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEP3C Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 460 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	460 V
Amperage:	11 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEP3D Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 575 V Electric Motor

Belt Drive
7.5 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Propane
Voltage:	575 V
Amperage:	8 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H4030BEN3D Hot Water Pressure Washer

3,000 PSI @ 4 GPM - 7.5 HP 575 V Electric Motor

Belt Drive
7.5 HP, 1750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 4 GPM @ 135F
24V Electronic Ignition Gas Valve Control
Vent Type A
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	4 GPM
Motor:	7.5 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Burner Fuel:	Natural Gas
Voltage:	575 V
Amperage:	8 A
Dimensions:	47″ x 23″ x 41″
Weight:	540 LBS

More Details

Dynablast H5030BEP1 Hot Water Pressure Washer

3,000 PSI @ 5.0 GP, - 10 HP 230 V Electric Motor

10 HP, 1,750 RPM
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	230 V
Amperage:	42 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast H5030BEP3A Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 208 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	575 V
Amperage:	30 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast H5030BEN3A Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 208 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	208 V
Amperage:	30 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast H5030BEP3B Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	230 V
Amperage:	28 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast H5030BEN3B Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

10 HP, 1,750 RPM
Interpump Triplex Plunger Pump.
Time Delay Shutdown
345,000 BTU Burner.
Heat Rise 5 GPM @ 110F.
24 Volt Electronic Ignition
Vent Type A.
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada.

Specifications:

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	230 V
Amperage:	28 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast H5030BEN3C Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 460 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications:

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	460 V
Amperage:	14 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast H5030BEP3C Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 460 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Time Delay Shutdown
Belt Drive
Rotary Switch
Flow Switch
Four Quick Connect Nozzles
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000 BTU
Heater:	Electric
Voltage:	460 V
Amperage:	14 A
Dimensions:	34″ x 22″ x 31″
Weight:	520 LBS

More Details

Dynablast H5030BEP3D Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 575 V Electric Burner

10 HP, 1,750 rpm
Interpump Triplex Plunger Pump
Time Delay Shutdown
345,000 BTU Burner
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	345,000
Heater:	Electric
Voltage:	575 V
Amperage:	11 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Dynablast H5030BEN3D Hot Water Pressure Washer

3,000 PSI @ 5.0 GPM - 10 HP 575 V Electric Motor

Interpump Triplex Plunger Pump
Time Delay Shutdown
Heat Rise 5 GPM @ 110F
24 Volt Electronic Ignition
Vent Type A
Easy Access On/Off
Rotary Switch
Flow Switch - For added safety
Four Quick Connect Nozzles
Assembled in Canada

Specifications

Operating Pressure:	3,000 PSI
Volume:	5 GPM
Motor:	10 HP Electric
Pump Speed:	1,450 RPM
BTU:	340,000
Heater:	Electric
Voltage:	575 V
Amperage:	11 A
Dimensions:	47″ x 23″ x 41″
Weight:	560 LBS

More Details

Kodiak MOD3000F Hot Water Heater Module

3,500 PSI @ 4.0 GPM - 315,000 BTU 115 Volt Diesel Burner

Heat Rise 4 gpm @135F
Fuel use # 1 or # 2
Assembled in Canada

Specifications

Operating Pressure:

3,500 PSI

Hot Water Electric

Filter Further

2,000 PSI @ 4.0 GPM – 5 HP Electric 240 V Motor

1,500 PSI @ 2 GPM - 2 HP 115 V Electric Motor

Specifications

2,500 PSI @ 3 GPM - 5 HP 230 V Electric Motor

Specifications

3,000 PSI @ 3 GPM - 7.5 HP 240 V Electric Motor

Specifications

3,000 PSI @ 3 GPM - 6 HP 575 V Electric Motor

Specifications

2,500 PSI @ 3.5 GPM - 6 HP 230 V Electric Motor

Specifications

3,000 PSI @ 3.8 GPM - 7.5 HP 230 V Electric Motor

Specifications

3,000 PSI @ 3.8 GPM - 7.5 HP 208 V Electric Motor

Specifications

3,000 PSI @ 3.8 GPM - 7.5 HP 230 V Electric Motor

Specifications

3,000 PSI @ 3.8 GPM - 7.5 HP 460 V Electric Motor

Specifications

3,000 PSI @ 3.8 GPM - 7.5 HP 575 V Electric Motor

Specifications

1,500 PSI @ 2 GPM - 2 HP 115 V Electric Motor

Specifications

2,000 PSI @ 4.0 GPM - 5 HP 230 V Electric Motor

Specifications

3,000 PSI @ 4.0 GPM - 7.5 HP 230 V Electric Motor

Specifications

2,000 PSI @ 5.0 GPM - 7.5 HP 230 V Electric Motor

Specifications

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Specifications

2,300 PSI @ 3.8 GPM - 6 HP 230 V Electric Motor

Specifications

2,000 PSI @ 3.6 GPM - 5 HP 230 V Electric Motor

Specifications

3,000 PSI @ 4 GPM - 7.5 HP 230 V Electric Motor

Specifications

3,000 PSI @ 5.0 GPM - 10 HP 230 V Electric Motor

Specifications

1,500 PSI @ 2 GPM - 2 HP 460 V Electric Motor

Specifications

2,300 PSI @ 3.1 GPM - 5 HP 460 V Electric Motor

Specifications

2,300 PSI @ 3.1 GPM - 5 HP 575 V Electric Motor

Specifications

2,000 PSI @ 3.6 GPM - 5 HP 460 V Electric Motor

Specifications

3,000 PSI @ 4.0 GPM - 7.5 HP 575 V Electric Motor

Specifications

3,000 PSI @ 5 GPM - 7.5 HP 460 V Electric Motor

Specifications

Dynablast H3620BEE3CSS/DSS Hot Water Pressure Washer

Applications for the Dynablast H3620BEE3CSS/DSS Hot Water Pressure Washer include:

Specifications for the Dynablast H3620BEE3CSS/DSS Hot Water Pressure Washer include:

3,000 PSI @ 4.0 GPM - 7.5 HP 460 V Electric Motor

Specifications

110 PSI @ 1.5 GPM - 0.75 HP 460 V Electric Motor

Specifications

3,500 PSI @ 4.0 GPM - 350,000 BTU Milli-Volt Valve NG Burner

Specifications

2,000 PSI @ 7.1 GPM - 10 HP 460 V Electric Motor

Specifications

3,500 PSI @ 4.0 GPM - 350,000 BTU 24 Volt NG Burner

Specifications

3,500 PSI @ 4.0 GPM - 345,000 BTU Milli-Volt Valve NG Burner

Specifications

3,500 PSI @ 4.0 GPM - 345,000 BTU 24 Volt NG Burner

Specifications

350,000 BTU - 3500 PSI - Natural Gas

Specifications

500 PSI @ 4.0 GPM - 1.5 HP Electric 120 V Motor

Specifications

2,500 PSI @ 3.0 GPM - 5 HP 230 V Electric Motor

Specifications

2,500 PSI @ 3.5 GPM - 6 HP 230 V Electric Motor

Specifications

1,500 PSI @ 2 GPM - 2 HP 575 V Electric Motor

Specifications:
