Flagro FLFVO1000TRK Self Contained Heater Trailer

780,000 BTU Indirect Fired Heater Trailer - Oil

  • 2 x FVO-400 Flagro Indirect Fired Heaters
  • 16 gauge 304 stainless steel heat exchanges
  • 4 x 12" heater duct outlets accepting standard industry ducting
  • 2 x 3,500 lbs dual axle, 4 x 15" rims & tires
  • Solid steel welded channel frame and floor
  • Electric emergency brakes included and lights
  • Safety chains, 2 5/16" trailer ball or 3" pintle hitch included

Specifications:

Heat Capacity: 2 x 390,000 BTU/H
Fuel: Oil
Hot Air Flow: 6,000 CFM
Discharge: 4 x 12" Discharge
Heater Fuel Consumption: 4.5 GPH (running continuous)
Ignition: Direct Spark
Engine: Yanmar or Kubota
kW: 8 / 1,800 RPM
Auxiliary Power Available: 120 V / 15 Amp Service
Engine Fuel Consumption: 1.08 GH (at full load)
Dimensions: 16-ft x 7.4 -ft x 6-ft
Outlet Ducting: FV-HD12 - 12” x 12 or FV-HD12x25 - 12” x 25
Weight: 4,000 LBS (empty)
Approvals: CSA & ESA



More Details
Flagro FLFVO-200RC Indirect Fired Heater

185,000 BTU Indirect Fired Oil Heater - Recirculating Hood

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & upgraded low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • Smart power indicator control verifies proper power supply to the heater
  • Stackable frame allow for convenient transportation & storage
  • Built-in fuel tank

Specifications

Heat Capacity: 185,000 BTU/H
Fuel Tank Capacity/ Run Time: 23 US GAL/ 17 HR
Power Requirements: 115V/15 AMPS (6AMP Draw)
Fan Motor/ Air Circulation: 1/2 H.P. / 2,600 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Nozzle Size/ Pump Pressure: 1.10 x 70A/ 180PSI
Air Outlet: 1 x 12” Dia or 1 X 16” Dia
Air Intake: 1 x 12” Dia
Wheels: 2 x 12” Dia. Pneumatic
Dimensions / Weight: 51.5” x 27” x 48” / 350 LBS.
Approvals: cETLus
Outlet Ducting: FV-HD12 – 12” x 12
Outlet Ducting: FV-HDG16 – 16” x 25
Return Ducting: FV-HD12 – 12” x 12
Remote Thermostat: FV-THB



More Details
Flagro FLFVO-200RC42 Indirect Fired Heater

185,000 BTU indirect Fired Oil Heater - Recirculating Hood & 42 US gal tank

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & upgraded low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • Smart power indicator control verifies proper power supply to the heater
  • Stackable frame allow for convenient transportation & storage
  • 42 US GAL Built-in fuel tank

Specifications

Heat Capacity: 185,000 BTU H
Fuel Capacity/Run Time: 42 US GAL. / 35 HRS
Power Requirements: 115V/15 AMPS (6AMP Draw)
Fan Motor/ Air Circulation: 1/2 H.P. / 2,600 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Nozzle Size/ Pump Pressure: 1.10 x 70A/ 180PSI
Air Outlet: 1 x 12” Dia or 1 X 16” Dia
Air Intake: 1 x 12” Dia
Wheels: 2 x 12” Dia. Flat Free
Dimensions / Weight: 51.5” x 27” x 48” / 350 LBS.
Approvals: cETLus
Outlet Ducting: FV-HD12 – 12” x 12 FT Hitex Black
Outlet Ducting: FV-HD12X25 – 12” x 25 FT Hitex Black
Outlet Ducting: FV-HDG16 – 16” x 25FT Hitex Black
Return Ducting: FV-HD12 – 12” x 12FT
Remote Thermostat: FV-THB







More Details
Flagro FLFVNP-200RC Indirect Fired Heater

200,000 BTU Indirect Fired Dual Fuel Heater - Recirculating Hood

  • Proven Riello burner technology
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • Smart power indicator control verifies proper power supply to the heater
  • Stackable frame allow for convenient transportation & storage

Specifications

NAME DESCRIPTION
Heat Capacity: 200,000 BTU/H
Fuel Consumption: Natural Gas- 190 CFH & Propane – 9.25 LBS/HR
Power Requirements: 115V/15 AMPS (6AMP Draw)
Fan Motor/ Air Circulation: 1/2 H.P. / 2,600 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Gas Manifold Pressure: Propane – 1.45” WC / Natural Gas – 3.44” WC
Air Outlet: 1 x 12” Dia or 1 X 16” Dia
Air Inlet: 1 x 12” Dia
Wheels: 2 x 12” Dia. Pneumatic
Dimensions / Weight: 51.5” x 27” x 44” / 300 LBS.
Approvals: cETLus
Accessories:
Outlet Ducting: FV-HD12 – 12” x 12FT
Outlet Ducting: FV-HDG16 – 16” x 25FT
Inlet Ducting: FV-HD12 – 12” x 12FT
Remote Thermostat: FV-THB



More Details
Flagro FLFVO-400 Indirect Fired Heater

390,000 BTU Indirect Fired Heater-Oil

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & updated low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Smart power indicator control verifies proper power supply to the heater
  • High density flat free wheels
  • Built-In fuel tank

Specifications


Heat Capacity: Up to 390,000 BTU/H
Fuel Tank Capacity/ Run Time: 42 US GAL/ 14 HRS
Power Requirements: 115V/15 AMPS (10.5 AMP Draw)
Fan Motor/ Air Circulation: 3/4 H.P. / 2,500 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Nozzle Size/ Pump Pressure: 2.00 X 60B / 170 PSI
Air Outlet: 2 x 12” Dia or 1 X 16” Dia
Wheels: 2 x 16” High Density Flat Free
Dimensions / Weight: 70” x 29” x 52” / 450 LBS.
Approvals: cETLus
Option: FVO-TLS – Tigerloop System



More Details
Flagro FLFVNP-400 Indirect Fired Heater

390,000 BTU Indirect Fired Heater- Dual Fuel

  • Proven Riello burner technology
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • High density flat free wheels
  • Smart power indicator control verifies proper power supply to the heater
  • Dual fuel heater - Propane or Natural Gas


Specifications

NAME DESCRIPTION
Heat Capacity: Up to 390,000 BTU/H
Fuel Consumption: Natural Gas – 380 CFH & Propane – 18.5 LBS/HR
Power Requirements: 115V/15 AMPS (10.5 AMP Draw)
Fan Motor/ Air Circulation: 3/4 H.P. / 2,500 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Gas Manifold Pressure: Propane – 1.5” WC/ Natural Gas 2.0” WC
Air Outlet: 2 x 12” Dia. or 1 X 16” Dia.
Wheels: 2 x 16” High Density Flat Free
Dimensions / Weight: 70” x 29” x 52” / 450 LBS.
Approvals: cETLus
Accessories:
Ducting: FV-HD12 – 12” x 12
Ducting: FV-HDG16 – 16” x 25
Remote Thermostat: FV-THB



More Details

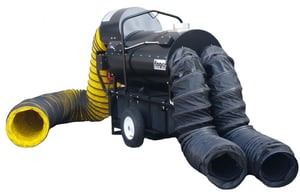

Flagro FLFVO-400RC Indirect Fired Heater

390,000 BTU Indirect Fired Oil Heater - Recirculating Hood

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & upgraded low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Smart power indicator control & volt meter verifies proper power supply to the heater
  • High density flat free wheels
  • Built-in fuel tank

Specifications:

NAME DESCRIPTION
Heat Capacity: Up to 390,000 BTU/H
Fuel Tank Capacity/Run Time: 42 US GAL / 14 HRS
Power Requirements: 115V/15 AMPS (10.5 AMP Draw)
Fan Motor/ Air Circulation: 1 H.P. / 4000 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Nozzle size/ Pump Pressure: 2.00 x 60B / 170 PSI
Air Outlet: 2 x 12” Dia. or 1 X 16” Dia.
Air Inlet: 1 x 16” Dia.
Wheels: 2 x 16” Dia. Flat Free
Dimensions / Weight: 70” x 29” x 54” / 450 LBS.
Approvals: cETLus
Outlet Ducting: FV-HD12 – 12” x 12FT
Outlet Ducting: FV-HDG16 – 16” x 25FT
Return Ducting: FV-HDV16 – 16” x 25FT
Remote Thermostat: FV-THB
Option: FVO-TLS – Tigerloop System



More Details

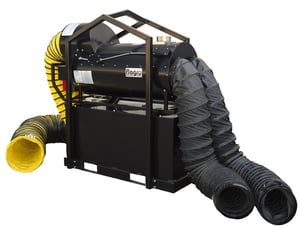

Flagro FLFVO-400RCBT Indirect Fired Heater - Bulk Tank

390,000 BTU Indirect Fired Oil Heater - Recirculating Hood & 118 US gal Tank

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & upgraded low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • Smart power indicator control and Volt meter
  • Tiger-loop system that eliminates fuel system air locks & 118 US Gal. fuel tank

Specifications:

NAME DESCRIPTION
Heat Capacity: Up to 390,000 BTU/H
Fuel Tank Capacity; 118 US GAL / 44 HRS
Power Requirements; 115V/15 AMPS (10.5 AMP Draw)
Fan Motor/ Air Circulation: 1 H.P. / 4000 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Nozzle Size/ Pump Pressure: 2.00 x 60B / 170 PSI
Air Outlet: 2 x 12” Dia. or 1 X 16” Dia.
Air Inlet: 1 x 16” Dia.
Wheels: Skid Base
Dimensions / Weight: 71” x 33” x 73” / 850 LBS.
Approvals: cETLus
Outlet Ducting: FV-HD12 – 12” x 12 or FV-HD12x25 – 12” x 25
Outlet Ducting: FV-HDG16 – 16” x 25
Return Ducting: FV-HDV16 – 16” x 12
Remote Thermostat: FV-THB





More Details
Flagro FLFVNP-400RC Indirect Fired Heater

390,000 BTU Indirect Fired Dual Fuel Heater - Recirculating Hood

  • Proven Riello burner technology
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 100 ft
  • Smart power indicator control & volt meter help verify power supply

Specifications:

NAME DESCRIPTION
Heat Capacity: Up to 390,000 BTU/H
Fuel Consumption: Natural Gas – 380 CFH & Propane 18.5 LBS/HR
Power Requirements: 115V/15 AMPS (10.5 AMP Draw)
Fan Motor/ Air Circulation: 1 H.P. / 4000 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Gas Pressure Manifold: Propane – 1.5” WC / Natural Gas – 2.0” WC
Air Outlet: 2 x 12” Dia. or 1 X 16” Dia.
Air Inlet: 1 x 16” Dia.
Wheels: 2 x 16” Dia. Flat Free
Dimensions / Weight: 70” x 29” x 47” / 365 LBS.
Approvals: cETLus
Outlet Ducting: FV-HD12 – 12” x 12FT
Outlet Ducting: FV-HDG16 – 16” x 25FT
Return Ducting: FV-HDV16 – 16” x 12FT
Remote Thermostat: FV-THB



More Details

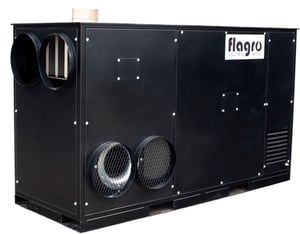

Flagro FLFVNP-750 Indirect Fired Heater

750,000 BTU Indirect Fired Heater - Dual Fuel

  • Standard 230 Volt/1 PH or 230 Volt / 3PH
  • Dual Fuel
  • Simply change from gas to gas in seconds
  • VFD (variable-frequency drive) for soft start
  • Skid base
  • 4 sided fork pockets
  • 7,000 CFM

Specifications:

NAME DESCRIPTION
Heat Capacity: 750,000 BTU/H
Fuel Consumption: Propane – 37 LBS./HR/ Natural Gas – 806 CFH
Power Requirements: 1 Phase 208-230V (18 AMP Draw)
Fan Motor/ Air Circulation: 7.5 H.P. / 7000 CFM
Fan Control: VFD Standard
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Gas Manifold Pressure: Propane – 1.5”WC/ Natural Gas – 2.2” WC
Air Outlet: 2 x 16” Dia.
Air Inlet: 2 x 16” Dia.
Wheels: Skid Base
Dimensions / Weight: 98” x 36” x 61” / 1400 LBS.
Approvals: cETLus
Outlet Ducting: FV-HDG16 – 16” x 25
Inlet Ducting: FV-HDV16 – 16” x 25



More Details
Flagro FLFVO-400TR Self Contained Heater Trailer

400,000 BTU Indirect Fired Oil Heater Trailer C/W Light Tower

  • 15" rims and tires
  • Includes hour meter and an interior compartment light
  • Turn signals and tail lights
  • Single axle brakes included
  • Electric emergency brakes included
  • 78 hour run time
  • Full Containment
  • (2) 1000W lights

Specifications:

NAME DESCRIPTION
Heat Capacity: 390,000 BTU/HR
Fuel Capacity/Run Time: 299 US Gal/ 78 HRS
Generator: Stamford New Age
Engine: Yanmar or Kubota
Light Tower: 9-ft 2 Stage Mast/ 2 x 1000 W Lights
Fan Motor/Air Circulation: 3000 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Nozzle Size/ Fuel Pump: 2.00 x 60B/ 170 PSI
Air Oulet: 2 x 12” Dia. or 1 x 16” Dia.
Wheels: Single Axle – 2 x 15” Gal. Rims with Radial Tires
Dimensions / Weight: 12
Approvals: CSA & ESA
Ducting: FV-HD12 – 12” X 12



More Details
