Flagro FLFVO-200RC42 Indirect Fired Heater

185,000 BTU indirect Fired Oil Heater - Recirculating Hood & 42 US gal tank

  • Proven Riello burner technology including nozzle pre-heater for cold weather start up & upgraded low temperature fuel pump
  • Welded 304 stainless steel heat exchanger
  • Powerful backward incline blower provides ultra-quiet operation & low amperage, ductable up to 150 ft
  • Smart power indicator control verifies proper power supply to the heater
  • Stackable frame allow for convenient transportation & storage
  • 42 US GAL Built-in fuel tank

Specifications

Heat Capacity: 185,000 BTU H
Fuel Capacity/Run Time: 42 US GAL. / 35 HRS
Power Requirements: 115V/15 AMPS (6AMP Draw)
Fan Motor/ Air Circulation: 1/2 H.P. / 2,600 CFM
Heat Exchanger: 16 Gauge 304 Stainless Steel
Ignition: Direct Spark
Nozzle Size/ Pump Pressure: 1.10 x 70A/ 180PSI
Air Outlet: 1 x 12” Dia or 1 X 16” Dia
Air Intake: 1 x 12” Dia
Wheels: 2 x 12” Dia. Flat Free
Dimensions / Weight: 51.5” x 27” x 48” / 350 LBS.
Approvals: cETLus
Outlet Ducting: FV-HD12 – 12” x 12 FT Hitex Black
Outlet Ducting: FV-HD12X25 – 12” x 25 FT Hitex Black
Outlet Ducting: FV-HDG16 – 16” x 25FT Hitex Black
Return Ducting: FV-HD12 – 12” x 12FT
Remote Thermostat: FV-THB







Additional Resources

Operating Manual
Operating Manual

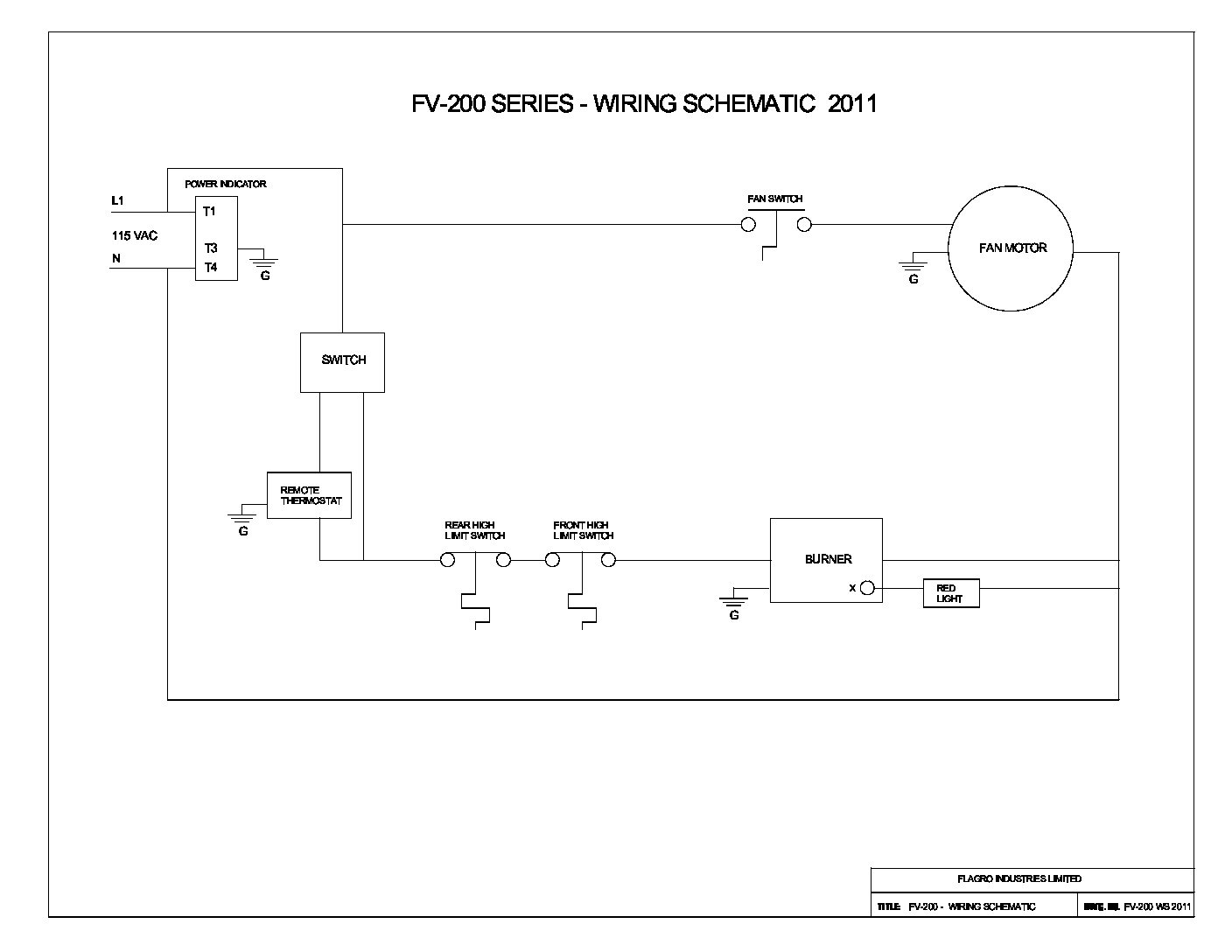

Wiring Schematic
Wiring Schematic
