Hypro Hydraulically Driven - Cast Iron Pumps

Hypro Hydraulically Driven - Cast Iron Pumps Features:

  • Max Temperature: 140°F
  • Hydraulic Ports: 1/2" NPT Inlet/3/4" NPT Outlet
  • Housing: Cast Iron, Impeller-Nylon
  • Hydraulic Motor Seal: Double Lip Teflon
  • Pump Seals: Viton/Ceramic
  • Max Motor Pressure: 3000 psi
 Product No.  Flow Pressure Hydraulic Flow PTO Output Inlet/Outlet
AG9302CHM1C 72 gpm 150 psi 13 gpm Open/Closed 1-1/4" NPT/1" NPT
AG9302CHM2C 65 gpm 96 psi 6 gpm Open/Closed 1-1/4" NPT/1" NPT
AG9302CHM4C 72 gpm 120 psi 7 gpm Closed 1-1/4" NPT/1" NPT
AG9303CHM1C 114 gpm 130 psi 13 gpm Open/Closed 1-1/2" NPT/1-1/4" NPT
AG9303CHM2C 97 gpm 95 psi 6 gpm Closed 1-1/2" NPT/1-1/4" NPT
AG9303CHM3C 125 gpm 98 psi 24 gpm Large Open 1-1/2" NPT/1-1/4" NPT
AG9303CHM4C 115 gpm 93 psi 7 gpm Open/Closed 1-1/2" NPT/1-1/4" NPT
AG9303CHM5C 147 gpm 145 psi 16 gpm Open/Closed 1-1/2" NPT/1-1/4" NPT
AG9305CHM3C 182 gpm 156 psi 19 gpm Open/Closed 2" NPT/1-1/2" NPT



More Details

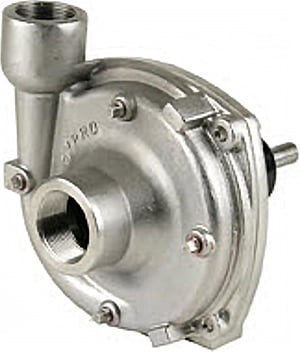

Hypro Hydraulically Driven - Stainless Steel Pumps

Hypro Hydraulically Driven - Stainless Steel Pumps Features:

  • Max Temperature: 140°F
  • Hydraulic Ports: 1/2" NPT Inlet/3/4" NPT Outlet
  • Housing: Impeller-Polypropylene
  • Hydraulic Motor Seal: Double Lip Teflon
  • Pump Seals: Life Guard Silicon Carbide
  • Max Motor Pressure: 3000 psi
 Product No.  Flow Pressure Hydraulic Flow PTO Output Inlet/Outlet
AG9302SHM1C 72 gpm 150 psi 13 gpm Open/Closed 1-1/4" NPT/1" NPT
AG9302SHM2C 65 gpm 96 psi 6 gpm Open/Closed 1-1/4" NPT/1" NPT
AG9302SHM4C 72 gpm 120 psi 7 gpm Closed 1-1/4" NPT/1" NPT
AG9303SHM1C 114 gpm 130 psi 13 gpm Open/Closed 1-1/2" NPT/1-1/4" NPT
AG9303SHM2C 97 gpm 95 psi 6 gpm Closed 1-1/2" NPT/1-1/4" NPT
AG9303SHM3C 125 gpm 98 psi 24 gpm Large Open 1-1/2" NPT/1-1/4" NPT
AG9303SHM4C 115 gpm 93 psi 7 gpm Open/Closed 1-1/2" NPT/1-1/4" NPT
AG9303SHM5C 147 gpm 145 psi 16 gpm Open/Closed 1-1/2" NPT/1-1/4" NPT



  • Max Temperature: 140°F
  • Hydraulic Ports: 1/2" NPT Inlet/3/4" NPT Outlet
  • Housing: Impeller-Polypropylene Hydraulic
  • Motor Seal: Double Lip Teflon
  • Pump Seals: Life Guard Silicon Carbide
  • Max Motor Pressure: 3000 psi
 Product No.  Flow Pressure Hydraulic Flow PTO Output Inlet/Outlet
AG9306SHM1C 207 gpm 130 psi 13 gpm Open/Closed 2" NPT/1-1/2" NPT
AG9306SHM3C 214 gpm 135 psi 24 gpm Open/Closed 2" NPT/1-1/2" NPT
AG9306SHM5C 212 gpm 140 psi 17 gpm Open/Closed 2" NPT/1-1/2" NPT



More Details
Hypro Hydraulically Driven - High Flow Pumps

Hypro Hydraulically Driven - High Flow Pumps Features:

New force field seal technology protects the pump against the harshest application environements.

  • Eliminates Dry Run
  • Eliminates Chemical & Fertilizer Bonding Failures
  • Maintenance Free Operation
  • Self-Regulating Chamber Designed to Provide Pressure
  • Direct Drop-In for Current 9307 Design

Components designed for high volume liquid fertilizer application on large capacity sprayers.

  • Hydraulic Motor Includes a Case Drain
  • 316 SS Impeller
  • Two Piece Shaft Design Includes 416 SS Wet End and 8260 Hardened Steel Drive End
  • Bearings Designed to Handle Continuous High Volume Pumping
  • 370 gpm @ 40 psi
  • 300 Universal Flange Inlet/220 Universal Flange Outlet
 Product No.  Flow Pressure Hydraulic Flow
AG9307CWS-GM10 370 gpm 110 psi 23 gpm



More Details

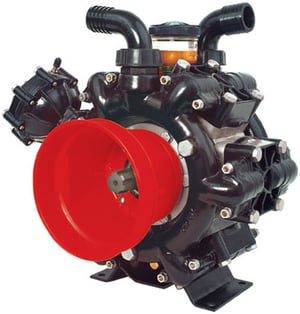

Hypro Diaphragm Pump Repair Kits
Pumps Diaphragm Kit
Desmopan		 Diaphragm Kit
Buna-N		 Valve Kit O-ring Kit
D70 AG9910KIT1720   AG9910KIT2364 AG9910KIT2365
D115, D135 AG9910KIT1721   AG9910KIT2370 AG9910KIT2026
D160 AG9910KIT1730   AG9910KIT2374 AG9910KIT1908
D250 AG9910KIT1722   AG9910KIT2114 AG9910KIT1904
D12GRGI AG9910KIT1882   AG9910KIT1992
D503 AG9910KIT1881   AG9910KIT1987 AG9910KIT1984
D252 (ALL) AG9910KIT1723   AG9910KIT2408 AG9910KIT2409
D30 (ALL) AG9910KIT1724 AG9910KIT2110 AG9910KIT1917 AG9910KIT1916
D50 AG9910KIT1725 AG9910KIT2111 AG9910KIT1920 AG9910KIT1919
D303 AG9910KIT2423   AG9910KIT2388 AG9910KIT2389
D403 AG9910KIT2423   AG9910KIT2388 AG9910KIT2389
D813 AG9910KIT2479   AG9910KIT1963 AG9910KIT2376
D1064 AG9910KIT2480   AG9910KIT1964 AG9910KIT2378
D1265 AG9910KIT2100   AG9910KIT2024 AG9910KIT2347
D1554 AG9910KIT1734   AG9910KIT1965 AG9910KIT1972
D1516 AG9910KIT2113   AG9910KIT2053 AG9910KIT2349



More Details
Hypro 5315, 5320, 5325 and 5330 Series Piston Pumps

Hypro 5315, 5320, 5325 and 5330 Series Piston Pumps Features:

  • Port Size: 1/2" NPT Inlet/Outlet
  • Max Temperature: 140°F
  • Pump Shaft Rotation: Bi-Rotational
  • Cast Iron Construction Industrial Spraying & Cleaning
  • Stainless Steel Valves and Ball Bearing
  • Belt and Pulley, Gasoline Engine or Electric Motor
  • Cups: Leather X (Standard), Optional RX - Buna CX Teflon Recommended to be used with Pulsation Dampener (AG33750012 Pulse Hose)
Product No.  Flow Pressure RPM Shaft Output
AG5315C X 1.5 gpm 500 psi 1800 5/8″ OD Solid Shaft
AG5320C X 2.2 gpm 500 psi 1800 5/8″ OD Solid Shaft
AG5325C X 2.5 gpm 500 psi 1800 5/8″ OD Solid Shaft
AG5330C X 3.0 gpm 500 psi 1800 5/8″ OD Solid Shaft
AG5315C HX 1.5 gpm 500 psi 1800 5/8″ ID Hollow Shaft
AG5320CH X 2.2 gpm 500 psi 1800 5/8″ ID Hollow Shaft
AG5325CH X 2.5 gpm 500 psi 1800 5/8″ ID Hollow Shaft
AG5330C HX 3.0 gpm 500 psi 1800 5/8″ ID Hollow Shaft





More Details
Hypro 4001 & 4101 Series - 4 Roller, Cast Iron, Ni-Resist or Silver Series XL Roller Pumps

4001 & 4101 Series - 4 Roller, Cast Iron, Ni-Resist or Silver Series XL Roller Pumps

  • Max Temperature: 140°F
  • Port Size: 3/4" NPT Inlet/Outlet
  • Housing: Cast Iron(C), Nylon(N), Silvercast(XL)
  • Pump Shaft Rotation: CW
  • Rollers: Super Rollers Standard (Poly T3)
  • Shaft Seals: Viton Standard
  • Direct Couples to Gasoline Engines
Product No.  Flow Pressure RPM Shaft Output
AG4001C 9.1 gpm 150 psi 1800 5/8″ Solid Shaft
AG4001CH 9.1 gpm 150 psi 1800 1/2″ Hollow Shaft
AG4001N 9.1 gpm 150 psi 1800 5/8″ Solid Shaft
AG4001NH 9.1 gpm 150 psi 1800 1/2″ Hollow Shaft
AG4001XL 9.1 gpm 150 psi 1800 5/8″ Solid Shaft
AG4001XLH 9.1 gpm 150 psi 1800 1/2″ Hollow Shaft
AG4101C 7.2 gpm 150 psi 2600 5/8″ Solid Shaft
AG4101CH 7.2 gpm 150 psi 2600 1/2″ Hollow Shaft
AG4101N 7.2 gpm 150 psi 2600 5/8″ Solid Shaft
AG4101NH 7.2 gpm 150 psi 2600 1/2″ Hollow Shaft
AG4101XL 7.2 gpm 150 psi 2600 5/8″ Solid Shaft
AG4101XLH 7.2 gpm 150 psi 2600 1/2″ Hollow Shaft





More Details
Hypro 4001 & 4101 Series - 12 Volt DC 4 Roller, Ni-Resist or Silver Series XL Roller Pumps

Hypro 4001 & 4101 Series - 12 Volt DC 4 Roller, Ni-Resist or Silver Series XL Roller Pumps

  • Max Temperature: 140°F
  • Port Size: 3/4" NPT Inlet/Outlet
  • Housing: Nylon(N), Silvercast(XL)
  • Pump Shaft Rotation: CW
  • Rollers: Super Rollers Standard (Poly T3)
  • Shaft Seals: Viton Standard
  • Locking Collar and Torque Arm in Each Package
  • 12 Volt DC
Product No.  Flow Pressure RPM Shaft Output
AG4001NEH 10.4 gpm 30 psi 1900 1/2″ Hollow Shaft
AG4001NE2H 9.9 gpm 50 psi 1600 1/2″ Hollow Shaft
AG4001XLEH 10.4 gpm 30 psi 1900 1/2″ Hollow Shaft
AG4001XLE2H 9.9 gpm 50 psi 1600 1/2″ Hollow Shaft
AG4101NEH 7.5 gpm 50 psi 1900 1/2″ Hollow Shaft
AG4101NE2H 5.9 gpm 90 psi 1600 1/2″ Hollow Shaft
AG4101XLEH 7.5 gpm 50 psi 1900 1/2″ Hollow Shaft
AG4101XLE2H 5.9 gpm 90 psi 1600 1/2″ Hollow Shaft





More Details
Hypro 7560-GM30 Series - 8 Roller, Hydraulically Driven Cast Iron, Ni-Resist or Silver Series XL Roller Pumps

Hypro 7560-GM30 Series - 8 Roller, Hydraulically Driven Cast Iron, Ni-Resist or Silver Series XL Roller Pumps

  • Max Temperature: 140°F
  • Port Size: 3/4" NPT Inlet/Outlet
  • Pump Shaft Rotation: CCW
  • Shaft Seals: Viton Standard
  • Motor Port Size: 10 SAE (7/8"-14" UNF)
  • GM15 Series 12 gpm Hydraulic Flow Max
  • Housing/Rotor: Cast Iron(C), Nylon(N), Silvercast(XL)
  • Rollers: Super Rollers Standard (Poly T3)
  • 1" Hose Barb Inlet Fitting for 1000 rpm Operation
  • Hydraulic Motor Drive (Open-Closed Center and Load Sensing Systems)
Product No.  Flow Pressure RPM Shaft Output
AG7560CGM30 20.1 gpm 300 psi 1000 6 gpm Hydraulic Flow Max
AG7560NGM30 20.1 gpm 300 psi 1000 6 gpm Hydraulic Flow Max
AG7560XLGM30 20.1 gpm 300 psi 1000 6 gpm Hydraulic Flow Max





More Details
Hypro Quick Couplers Female to Female

Hypro Quick Couplers Female to Female

 Product No.  Pump Series PTO (ID)  Pump End (ID)  Material RPM
AG13210006 6500 1-3/8″ (6 Spline) 5/8″ Die Cast 540
AG13210007 1500/1700/7560/7700 1-3/8″ (6 Spline) 15/16″ Die Cast 540
AG13210008 4000/6500 1-3/8″ (21 Spline) 5/8″ Die Cast 1000
AG13210009 1500/1700/7560/7700 1-3/8″ (21 Spline) 15/16″ Die Cast 1000
AG13210012 4000/6500 1-3/8″ (Multi Speed) 5/8″ Die Cast 540/1000
AG13210013 1500/1700/7560/7700 1-3/8″ (Multi Speed) 15/16″ Die Cast 540/1000
AG13230072 1500/1700/7560/7700 1-3/8″ (6 Spline) 15/16″ Forged Steel 540
AG13230073 1500/1700/7560 1-3/8″ (21 Spline) 15/16″ Forged Steel 1000
AG13230074 6500 1-3/8″ (6 Spline) 5/8″ Forged Steel 540
AG13230075 4000/6500 1-3/8″ (21 Spline) 5/8″ Forged Steel 1000
AG13230076 1500/1700/7560/7700 1-3/8″ (Multi Speed) 15/16″ Die Cast 540/1000
AG13230077 4000/6500 1-3/8″ (Multi Speed) 5/8″ Die Cast 540/1000



More Details
Flojet Air Operated Diaphragm Pumps



Pump 1:

 Product No.  Flow  Pressure  Inlet/ Outlet  Seals  Weight
5100020 1.9 gpm 60 psi 3/8" Barb Viton 1.3 lbs
5100040 1.9 gpm 75 psi 3/8" Barb Santoprene 1.4 lbs



Features:

  • Acetal Copolymer Housing
  • Positive Displacement Double Diaphragm Design
  • 120° F Max Temperature
  • Operating Pressure: 75psi Max
  • Air Supply Inlet: 1/4" Hose Barb
  • Air Pressure: 80psi Max
  • Fluid Inlet Pressure: 15psi Max
  • Self Priming: 28ft/8.5m Dry  |  32ft/9.8m Wet



dynablast.Flojet.G57.DuplexSeries.DiaphragmPump

Pump 2:

Product No.  Flow  Pressure  Inlet/ Outlet  Seals  Weight
G573205A 5.0 gpm 100 psi 3/8" Barb Viton 1.2 lbs
G573215A 5.0 gpm 100 psi 1/2" Barb Viton 1.2 lbs
G575205A 5.0 gpm 100 psi 3/8" Barb Santoprene 1.2 lbs
G575215A 5.0 gpm 100 psi 1/2" Barb Santoprene 1.2 lbs



Features:

  • Polypropylene Housing
  • Positive Displacement Double Diaphragm Design
  • 110° F Max Temperature
  • Operating Pressure: 20-100psi Max
  • Air Supply Inlet: 1/4" Hose Barb
  • Air Pressure: 20-100psi Max
  • Fluid Inlet Pressure: 30psi Max
  • Self Priming: 15ft/4.5m Dry  |  20ft/4.5m Dry



dynablast.Flojet.G257.AirOperatedDiaphragmPump

Pump 3:

 Product No.  Flow  Pressure  Inlet/ Outlet  Seals  Weight
G257301A 10 gpm Up to 90 psi 1/2" Barb Viton 3.5 lbs
G257302A 10 gpm Up to 90 psi 1/2" Barb Santoprene 3.5 lbs
G257501A 10 gpm Up to 90 psi 1/2" Barb Viton 3.5 lbs
G257502A 10 gpm Up to 90 psii 1/2" Barb Santoprene 3.5 lbs



Features:

  • Polypropylene Housing
  • Positive Displacement Double Diaphragm Design
  • 110° F Max Temperature
  • Operating Pressure: 20-100psi Max
  • Air Supply Inlet: 1/4" Hose Barb
  • Air Pressure: 20-100psi Max
  • Fluid Inlet Pressure: 30psi Max
  • Self Priming: 15ft/4.5m Dry  |  20ft/4.5m Dry
More Details
Flojet Duplex II Series Diaphragm Pump

Features:

  • 160° F Max Temperature
  • 12 volt, 24 volt, 115 volt
  • Excellent Self Priming Capabilities
  • Port Size: 3/8" NPT Inlet/Outlet
  • Choice of Chemical Resistant Materials
  • Self Priming: Up to 8ft Dry
2100535 2.35 gpm 50 psi 12 v - - 5 Santoprene/Santoprene
2100573 2.15 gpm 50 psi 12 v - - 2 Santoprene/Santoprene
D3131E1311A 1.60 gpm 50 psi 12 v - 50 psi 3 EPDM/EPDM
D3131V5011A 2.15 gpm 50 psi 12 v - - 2 Viton/Viton
D3131H5011A 2.15 gpm 50 psi 12 v 60 psi - 2 Santoprene/Santoprene
D2131I1311A 1.60 gpm 50 psi 12 v - 50 psi 2 Buna/Viton
D3134H1311A 1.60 gpm 50 psi 12 v - 50 psi 2 Santoprene/EPDM
D3135E7011A 2.00 gpm 100 psi 12 v 100 psi 3- 3 EPDM/EPDM
D21X007A 2.1 gpm 50 psi 12 v - 50 psi 2 Viton/Buna
D31X015F 2.00 gpm 50 psi 12 v - 50 psi 3 Buna/Buna
2100332 2.15 gpm 50 psi 24 v 60 psi - 2 Santoprene/Santoprene
D3231B5011A 2.00 gpm 60 psi 24 v 60 psi - 2 Buna/Buna
2100032 1.85 gpm 50 psi 115 v 60 psi - 2 Santoprene/Santoprene
D1625F1411A 2.2 gpm 100 psi 115 v - - - Viton/EPDM
D1632J7011A 1.4 gpm 70 psi 115 v - - - Viton/Santo



More Details
