Pratissoli VK12 Series Plunger Pumps

Features:

  • - GPM: 5.3
  • - PSI: 21750
  • - RPM: 1500, 1800 & 2200
  • - Bore: 12 mm
  • - Stroke: 50 mm
  • - HP: 78
  • - Weight: 96 lbs.

Additional features of the Pratissoli VK12 Series Plunger Pumps:

  • - VK Series Triplex Plunger Pumps are available in 2 flows. Low pressure packing design with integrated cooling system. high volumetric efficiency suction/delivery valves featuring spherical design of sealing areas. Splash lubrication.
  • - Includes External Gear Box in 1500, 1800 or 2200 rpm, can be positioned on left or right hand side of the pump.
  • - Max. Inlet Pressure: 45 psi.
  • - Max. Fluid Temperature: 140° F.
  • - Inlet Port Thread: 3/4" BSP-F.
  • - Discharge Port Thread: 1/2" BSP-F Flange.
  • - Shaft Diameter: 1.575 in. /40.0 mm
  • - Pump Dimensions: 25.39" x 14.44" x 15.11"
  • - Crankcase Oil Capacity: 14 litres

Additional Resources

Pratissoli VK12 Series Plunger Pumps Manual
Pratissoli VK12 Series Plunger Pumps Manual
Pratissoli VK Series Triplex Plunger Pumps Repair Manual
Pratissoli VK Series Triplex Plunger Pumps Repair Manual
Pratissoli VK Series Triplex Plunger Pumps
Pratissoli VK Series Triplex Plunger Pumps
Pratissoli VK Series Triplex Plunger Pumps Spec. Sheet
Pratissoli VK Series Triplex Plunger Pumps Spec. Sheet
Pratissoli VK12 Series Plunger Pump Accessories
Pratissoli VK12 Series Plunger Pump Accessories
Pratissoli VK Series Triplex Plunger Pumps User Maintenance Manual
Pratissoli VK Series Triplex Plunger Pumps User Maintenance Manual

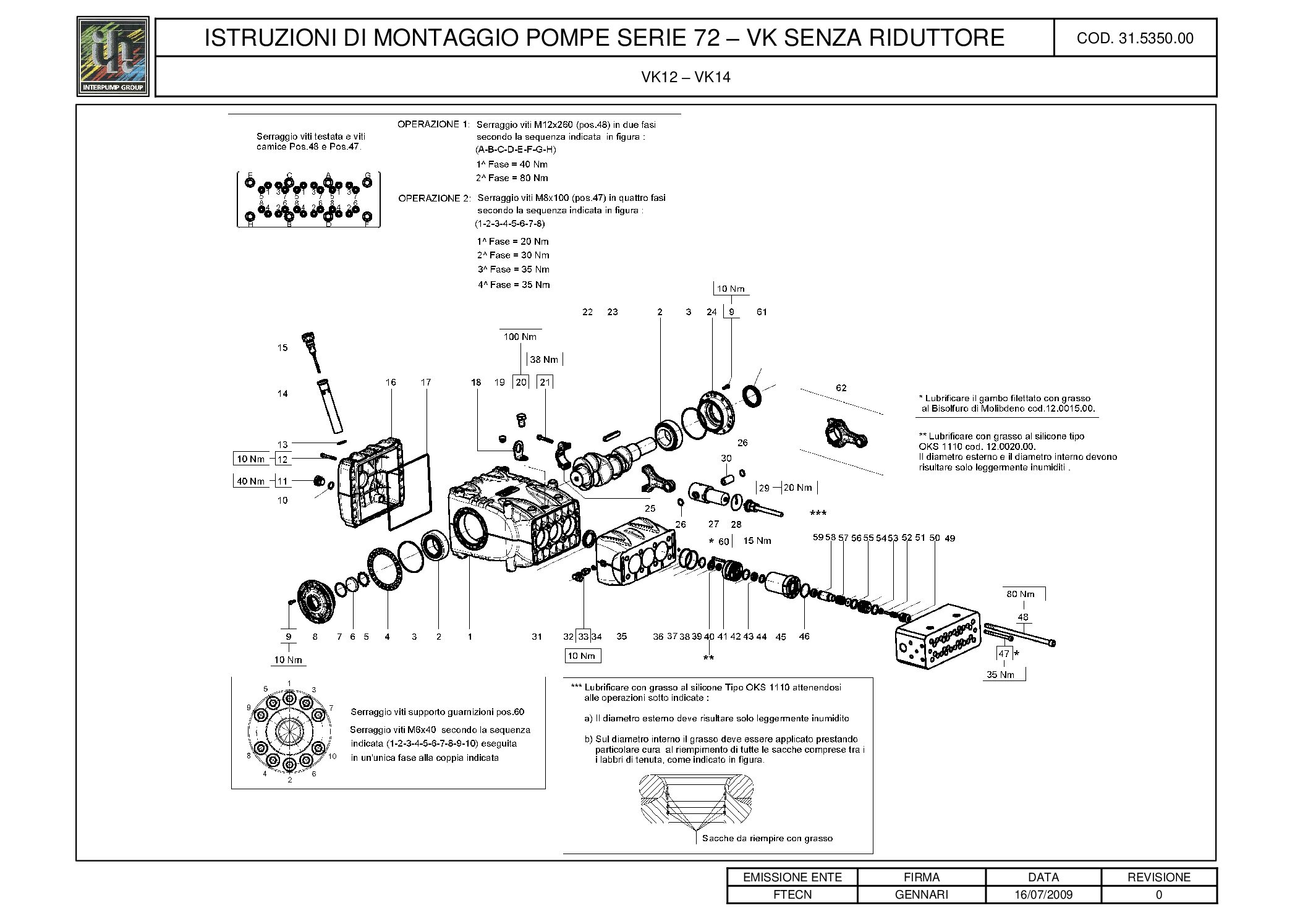

Pratissoli VK Series Triplex Plunger Pumps Parts Breakdown
