Dynablast HV300FLS-12V Hydrovac Hot Water Heater

300,000 BTU 12 Volt Fuel Burner

  • No Steam
  • ETL Certified
  • Momentary Test, Flow & Thermostat
  • Fuel use # 1 or # 2
  • High-Pressure Blow-Off Valve
  • Burner Temperature Control
  • Multi-Directional Rain Cap
  • Stainless Steel Skin
  • Assembled in Canada
  • ETL Certified

Specifications

BTU: 420,000
Heat Rise: 10 @ 120°F
Coil: 3/4" Schedule 80
Amps: 18.8 A
Burner: Beckett SSDC 12 V
Fuel Consumption: 4.73 GPH
Coil Water Discharge: Bottom
Fuel Pressure Gauge: Yes
Temperature Gauge: Yes
Dimensions: 26.5" x 26.5" x 58"
Weight: 850 LBS



Additional Resources

Heater Literature English
Heater Literature English
HV300 Owners Manual English
HV300 Owners Manual English

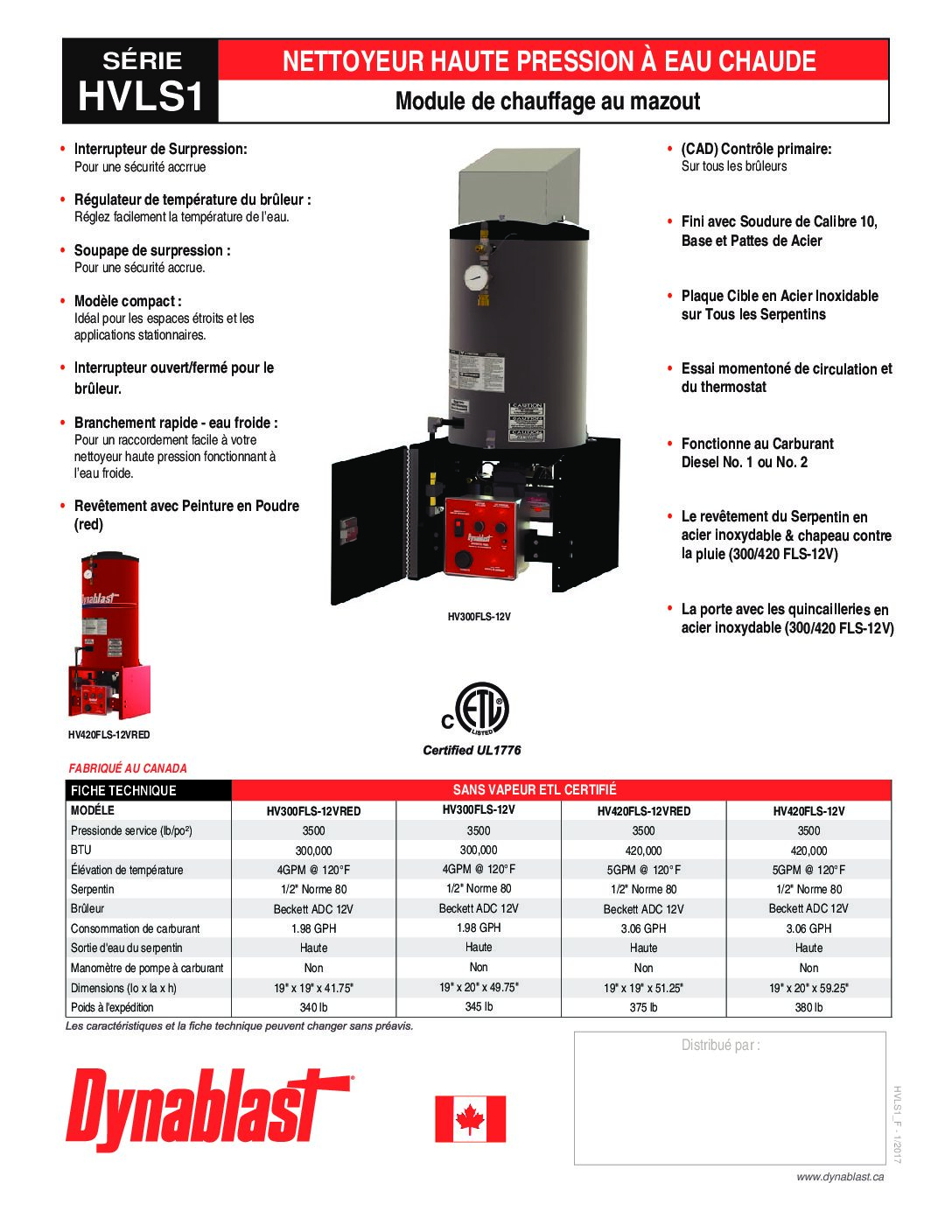

HVFLS Literature English
